MULTICOMP PRO MCSCH895681KU Power Inductor
This 680h inductance in a radial leaded design features a 10% tolerance, suitable for high-temperature applications up to 130°C. Its compact structure includes a ferrite core F4F DR2W7.8 x 9.5 (SW), lead-free solder, and wire UEFN/U rated at 155°C with a diameter of 0.22mm. Designed for reliable performance in power electronics, it offers an inductance of approximately 630.4μH with a maximum DCR of 1.40Ω, and withstands temperatures from -55°C to +130°C, ensuring durability under demanding conditions.
MULTICOMP PRO MCSCH895681KU Power Inductor Specifications:
- Inductance: 680μH ±10%
- Tolerance: 10%
- Operating Temperature Range: -55°C to +130°C
- Core Material: F4F DR2W7.8 x 9.5 ferrite
- Wire Diameter: 0.22mm UEFN/U (155°C)
- DCR: 1.40Ω (Max.)
- Inductance Change: Within +5% after humidity test
- Temperature Rise: 40°C (Max.) during operation at 2.6A
- Storage Conditions: Below 70% RH, moisture-sensitive level 3 according to J-STD-020B
- Solder: Lead-free, Sn99.3% / Cu0.7%, Dip temperature: 260°C +5°C
- Test Frequency: 1kHz, Voltage: 0.25V
- Mechanical Dimensions: A=7.81mm, B=9.5mm, C=5.07mm, D=0.72mm, E=5.09mm, F=0.68mm

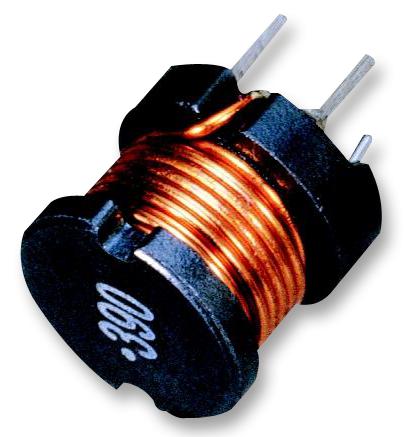

Buy the Buy Multicomp Radial Leaded Inductor Part Number MCSCH895-681KU Online
Order the Multicomp power inductor MCSCH895-681KU online today for high-temperature performance, reliable inductance, and durable design fit for demanding electronic projects. Its robust ferrite core and lead-free solder ensure long-term stability and efficiency. Perfect for critical power applications, this radial leaded inductor offers excellent electrical characteristics, including an inductance of 680μH with a 10% tolerance. Enjoy fast delivery and secure online purchase options to enhance your electronic and industrial equipment assembly with confidence.
Buy Multicomp MCSCH895-681KU now and experience reliable high-temperature inductance for power electronics applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSCH895681KU?
You can click on the BUY or RFQ button to purchase MCSCH895681KU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSCH895681KU?
You can download the MCSCH895681KU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSCH895681KU?
MULTICOMP PRO
