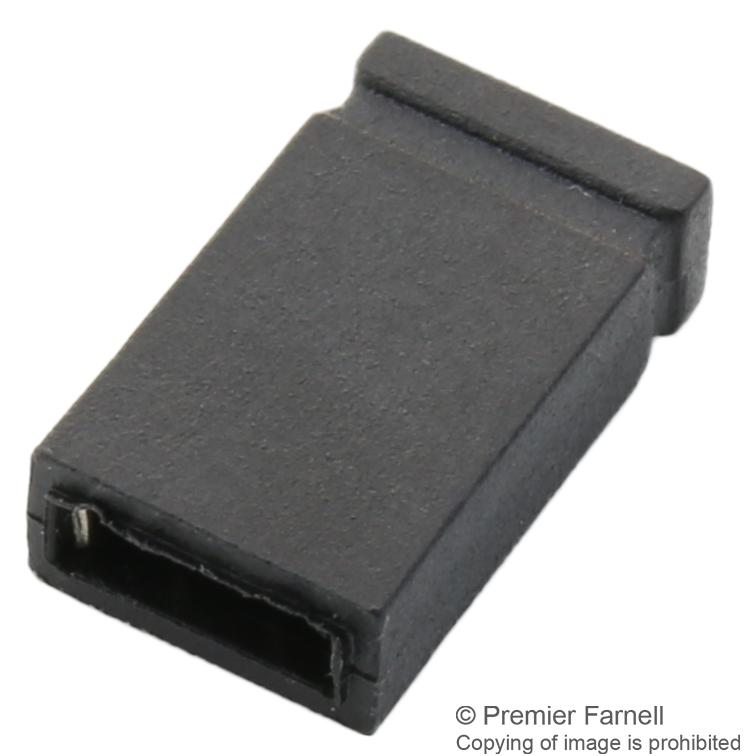

MULTICOMP PRO MC2228EG Mini Jumper
The 2.54mm Mini Jumper is a versatile open and close type connector suitable for various electronic applications. Made of PBT or Nylon 6.6 with UL94V-0 rating, it features gold-plated phosphor bronze contacts for reliable connectivity. Capable of handling 3A AC/DC and rated for 250V AC/DC, it withstands temperatures from -40°C to +105°C. Its compact size and robust design make it ideal for PCB connections, enabling quick and secure jumper linking in electronic circuits.
MULTICOMP PRO MC2228EG Mini Jumper Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Material: PBT / Nylon 6.6 (UL94V-0)
- Contact Material: Phosphor Bronze
- Plating: Gold
- Dimensions: Width approximately 2.54mm, length varies depending on open or close type
- Certifications: RoHS Compliant
Buy the Multicomp Series Mini Jumper: MC2228EG
Order the Mini Jumper from Multicomp today for efficient and secure PCB connections. Its open and close types, gold-plated contacts, and high-temperature range ensure durability and performance. Ideal for electronic circuits requiring reliable jumper linkings, this product offers ease of installation, high resistance to environmental factors, and compliance with RoHS standards. Enhance your electronic assembly with this compact, robust jumper, perfect for a wide range of industrial, automation, and control applications. Buy online now to streamline your projects.
Buy Multicomp MC2228EG now and experience reliable PCB jumping and secure electrical connections in compact designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2228EG?
You can click on the BUY or RFQ button to purchase MC2228EG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2228EG?
You can download the MC2228EG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2228EG?
MULTICOMP PRO
