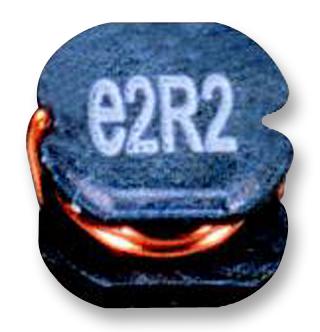

MULTICOMP PRO MCSD105331KU Power Inductor
This high-quality SMD inductor offers a 330 microhenry inductance with a ±10% tolerance, suitable for compact electronic designs. It features a ferrite core, a maximum DC resistance of 21.150 ohms, and a rated current of 520mA, making it ideal for power supply filtering and energy storage applications. Its small dimensions—5.4mm by 10.2mm—allow for easy integration into PCB layouts. Operating between -55°C to +130°C, it maintains stability at high frequencies up to 100kHz, ensuring reliable performance in demanding environments.
MULTICOMP PRO MCSD105331KU Power Inductor Specifications:
- Inductance: 330UH
- Inductance Tolerance: ±10%
- DC Resistance Max: 21.150 ohms
- DC Current Rating: 520mA
- Case Style: SMD
- Number of Pins: 2
- Lead Spacing: 3.5mm
- Core Material: Ferrite
- External Depth: 9mm
- External Length / Height: 5.4mm
- External Width: 10.2mm
- Resonant Frequency: 100kHz
- Operating Temperature: -55°C to +130°C
Buy the Multicomp Series MCSD105 Inductor: 330UH
Experience reliable performance with the Multicomp Series MCSD105 power inductor, featuring 330 microhenry inductance, a 520mA current rating, and a ferrite core. Its compact SMD design, RoHS compliance, and excellent frequency stability make it ideal for power filtering and energy storage in compact electronics. Operating over a temperature range from -55°C to +130°C, this inductor is perfect for demanding applications requiring high reliability. Buy online now to enhance your electronic projects with quality components built for durability and precision.
Get Multicomp Series MCSD105 inductor today—built for precision and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSD105331KU?
You can click on the BUY or RFQ button to purchase MCSD105331KU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSD105331KU?
You can download the MCSD105331KU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSD105331KU?
MULTICOMP PRO
