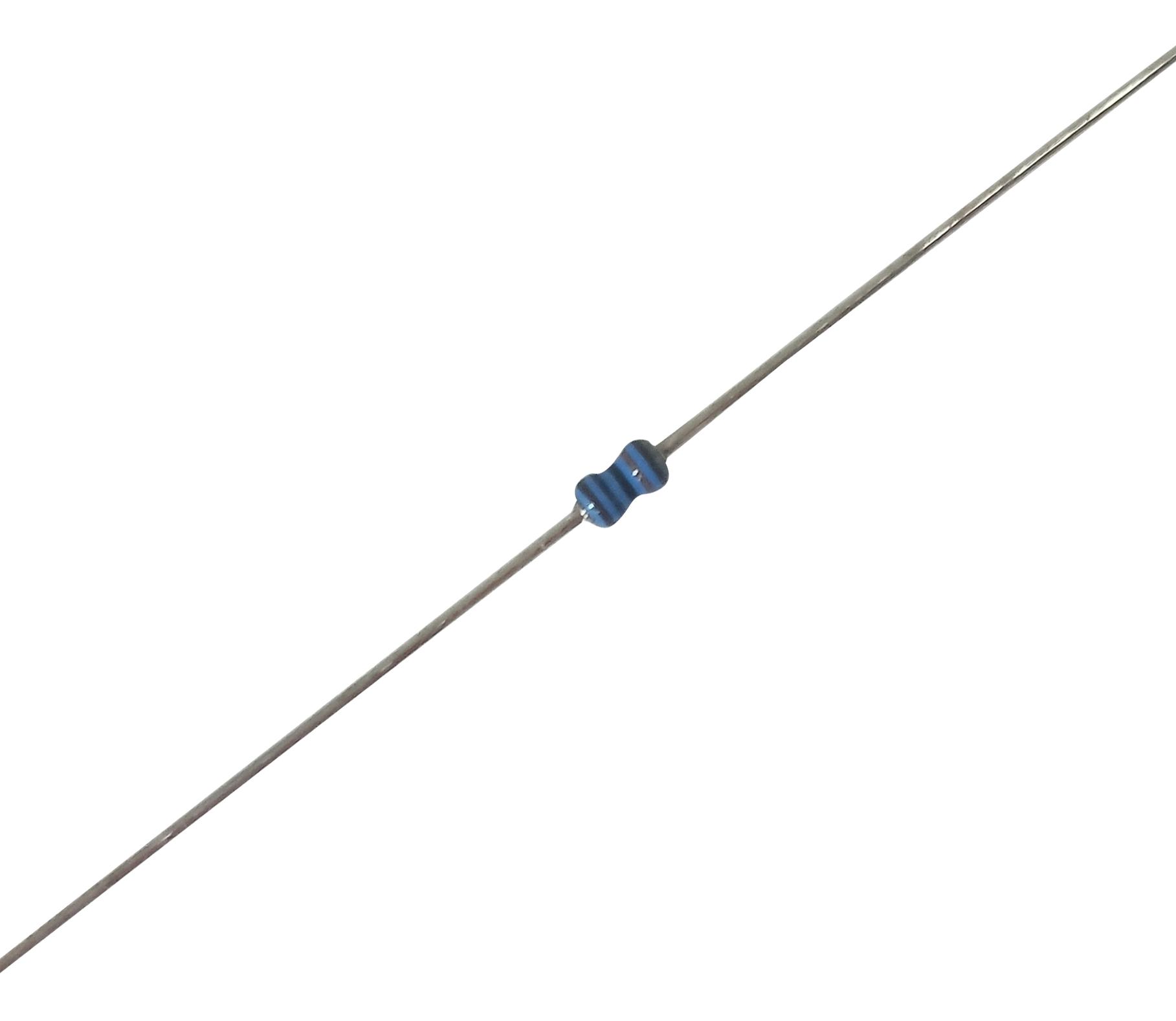

MULTICOMP PRO MP006756 Metal Film Resistors
Metal film fixed resistors are axial leaded components designed for precise resistance and high stability in electronic circuits. Made with metal film resistance film, they feature ceramic bodies with steel end caps and annealed copper leads coated with tin for reliable electrical connections. These RoHS-compliant resistors operate within -55°C to +155°C, with a power rating of 1/8W and resistance ranges from 12.20Ω to 1MΩ. Designed for durability, they provide excellent insulation resistance, and mechanical strength, and are suitable for various industrial applications requiring precise, stable resistance values.
MULTICOMP PRO MP006756 Metal Film Resistors Specifications:
- Type: Metal Film
- Rated Power: 1/8W (0.125W)
- Max. Working Voltage: 200V or VPxR whichever lesser
- Max. Overload Voltage: 400V or 2.5VPxR whichever lesser
- Dielectric Withstanding Voltage: 200V
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 12.20Ω to 1MΩ
- Resistance Tolerance: ±2%
- Resistance Film: Metal Film
- Body Material: Ceramics
- End Cap Material: Steel (Tin plated iron surface)
- Lead Wire: Annealed copper wire coated with tin
- Insulation Resistance: Min. 10,000MΩ
- Temperature Coefficient: ±50 PPM/°C Max
- Dielectric Withstanding Voltage: 200V
- Terminal Mechanical Strength: Resistance to 2.5kg load for 10s
- Solderability: Min. 95% coverage
- Soldering Temp. (Wave): 235-255°C, Dwell time: 10s
- Resistance Change After Load: ±1% with no damage
- Vibration Resistance: 55Hz, 2hrs in 3 planes
- Humidity Resistance: Resistance to 1000 hrs at 40°C and 90-95% humidity
- Pulse Overload Resistance: Cycles of 10,000 at 4x RCWV
Buy the Multicomp MP006756 – Reliable Metal Film for Industrial Applications
Purchase Multicomp MP006756 online today to ensure your projects benefit from high stability, precise resistance, and reliable performance. These resistors are designed with durable metal film technology, offering excellent insulation and mechanical strength. With wide resistance ranges from 12.20Ω to 1MΩ, they are suitable for industrial, automation, and electronic circuit applications. Their RoHS compliance guarantees environmental safety. Easy to incorporate with solderable leads, these resistors are your ideal choice for durable, high-performance electronic systems, ensuring consistent operation under various conditions.
Get Multicomp MP006756 today—built for precision and long-lasting durability in demanding electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006756?
You can click on the BUY or RFQ button to purchase MP006756 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006756?
You can download the MP006756 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006756?
MULTICOMP PRO
