MULTICOMP PRO MCSDRH73B220MHF High Current SMD Power Inductor
This high-quality SMD power inductor from Multicomp Pro offers excellent performance for DC-DC conversion in electronic devices like notebooks and LCD drivers. With a compact size, low core loss ferrite core, and operating temperature range from -55°C to +130°C, it delivers up to 22uH inductance and supports high current loads up to 8A. Ideal for power line filtering and high-density PCB designs, its robust construction ensures reliable operation in demanding electronic applications, making it suitable for power supply modules, converters, and detailed circuit designs.
MULTICOMP PRO MCSDRH73B220MHF High Current SMD Power Inductor Specifications:
- Inductance range: 1uH to 220uH with tolerance +20%
- Operating temperature: -55°C to +130°C
- Maximum height: 3.55mm (MCSDRH73B series), 6mm (MCSDRH125B series)
- Footprint: 7.6mm x 7.6mm (MCSDRH73B), 12.5mm x 12.5mm (MCSDRH125B)
- Current rating: up to 8A (MCSDRH73B), up to 24.2A (MCSDRH125B)
- DCR: Typically 0.0091Ω at 1uH, 0.3Ω at 220uH, with maximum values specified
- Operating frequency: 100kHz, 0.25V measurement
- Ferrite core material for low core loss and high efficiency
- RoHS compliant, suitable for high-density electronic applications
- Designed for power line filters, notebook computers, LCD drivers, and other electronic equipment
- Includes detailed mechanical dimensions and PCB layout recommendations for optimal integration.

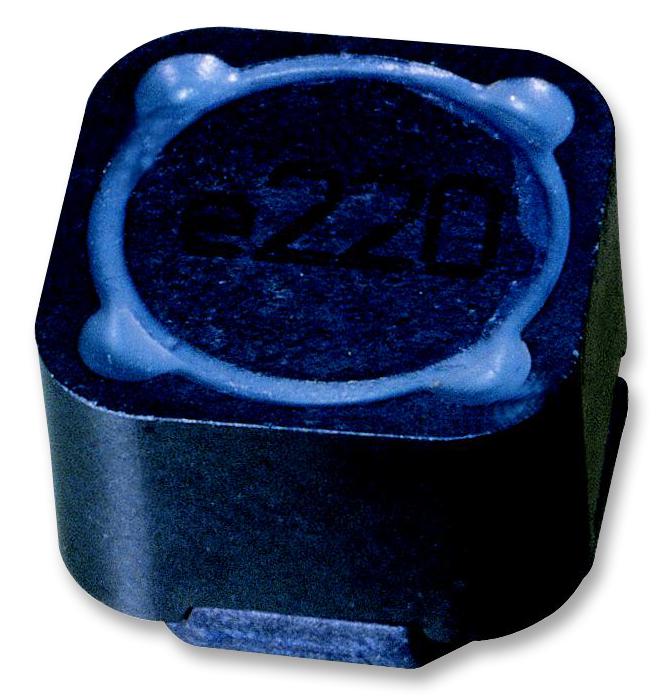

Buy the Multicomp Series MCSDRH73B Inductor: 22uH High Current SMD Ferrite - MCSDRH73B220MHF
Purchase your Multicomp Series MCSDRH73B220MHF online today to ensure your electronic projects benefit from reliable power management. This 22uH ferrite inductor supports high currents up to 8A, making it ideal for DC-DC converters, notebook power supplies, and LCD driver circuits. Its compact low-profile design with dimensions of 7.6mm x 7.6mm x 3.55mm ensures easy integration into high-density PCBs. Designed for durability and efficient operation, order now to upgrade your power modules with this high-quality inductor, backed by excellent performance and RoHS compliance.
Order your Multicomp Series MCSDRH73B220MHF today and enhance your power modules with reliable high-current inductors suitable for demanding electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSDRH73B220MHF?
You can click on the BUY or RFQ button to purchase MCSDRH73B220MHF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSDRH73B220MHF?
You can download the MCSDRH73B220MHF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSDRH73B220MHF?
MULTICOMP PRO
