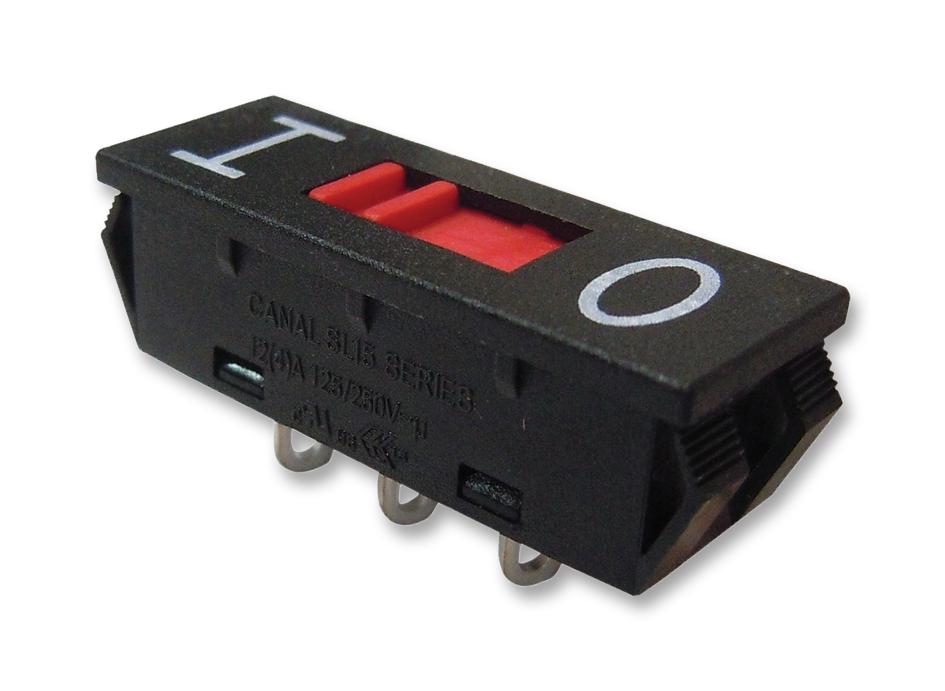

MULTICOMP PRO MCSL15121ALCJP3A1JCN Slide Switch
The slide switch is a single-pole double-throw device rated for 12(4)A at 125/250V and 10(1)A at 250V, suitable for various switching applications. It features a dielectric strength of 1,500V AC for one minute, with insulation resistance of at least 500V DC 00MQ and contact resistance of a maximum 20mΩ. Designed for panel mounting, the switch can accommodate panel thicknesses from 1.0 to 2.0mm. Its compact size and reliable performance make it ideal for industrial, control, and automation systems requiring precise switching functions.
MULTICOMP PRO MCSL15121ALCJP3A1JCN Slide Switch Specifications:
- Rating: 12(4)A 125/250V, 10(1)A 250V
- Circuit: Single-Pole Double Throw
- Dielectric Strength: 1,500V AC for 1 minute
- Insulation Resistance: 500V DC, minimum 00MQ
- Contact Resistance: 20mΩ maximum
- Mounting: Panel mount, panel thickness 1.0-2.0mm
- Dimensions: Refer to diagram (in Inches and Millimetres)
- Tolerances: +0.012 inch / 0.3 mm
- Part Number: MCSL15121ALCJP3A1JCN
Buy the Multicomp MCSL15121ALCJP3A1JCN – Reliable Switch for Industrial Applications
Purchase your Multicomp MCSL15121ALCJP3A1JCN slide switch online today and experience dependable switching for industrial and automation systems. This compact, high-reliability device supports 12A at 125/250V and is suitable for panels with 1.0 to 2.0mm thickness. With a dielectric strength of 1500V AC and low contact resistance, it ensures long-lasting performance for control, automation, and power applications. Shop now for fast, secure online ordering and ensure your projects are equipped with quality components.
Order your Multicomp Series MCSL15121ALCJP3A1JCN slide switch today and ensure robust, precise switching performance in your control systems.
