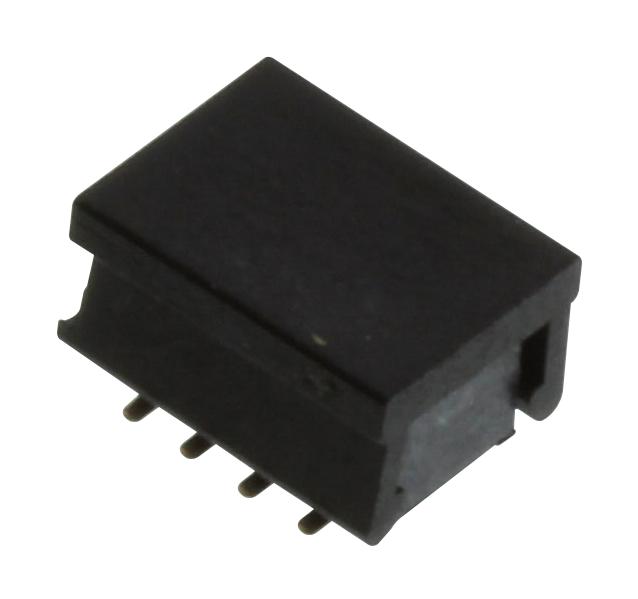

MULTICOMP PRO MCSVS1D08G PCB Socket
This double-row, vertical, surface-mount device (SMD) socket with cap offers reliable electrical connections for complex electronic assemblies. Constructed with high-temperature nylon 6T plastic and gold-plated phosphor bronze contacts, it provides excellent durability and corrosion resistance. Designed for easy installation, it features a 1mm pitch, with options available up to 40 positions. The socket is RoHS-compliant, rated for 1A current, and supports voltage up to 100V AC/DC. It is suitable for applications requiring robust, space-saving electrical connections in compact electronic modules.
MULTICOMP PRO MCSVS1D08G PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 5000MΩ Min
- Dielectric Withstanding Voltage: 500V AC
- Operating Temperature Range: -40°C to +105°C
- Material: High temp. plastic (Nylon 6T UL94V-0)
- Contact Material: Phosphor Bronze
- Plating: Gold Plated
- Dimensions: 1.0mm pitch, number of positions varies up to 40
- RoHS Compliant
- Design: Double row, vertical surface-mount connection
- Application: Electrical connections in compact electronic modules
Buy the Buy Multicomp Pro PCB Socket With Cap Part Number MC-SVS1-D08-G Online
Purchase the Multicomp Pro PCB Socket with Cap part number MC-SVS1-D08-G online and enjoy fast delivery. This reliable 1mm pitch socket features a double-row, vertical design with gold-plated phosphor bronze contacts, ensuring excellent electrical performance and durability. Its high-temperature nylon plastic housing provides robustness in various operating environments. Suitable for surface-mount applications, it supports up to 1A current and 100V voltage ratings, making it an ideal choice for compact, space-saving electronic assemblies that require reliable connections and RoHS compliance.
Get Multicomp Pro MC-SVS1-D08-G today—designed for durable, space-efficient PCB connections in electronic designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSVS1D08G?
You can click on the BUY or RFQ button to purchase MCSVS1D08G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSVS1D08G?
You can download the MCSVS1D08G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSVS1D08G?
MULTICOMP PRO
