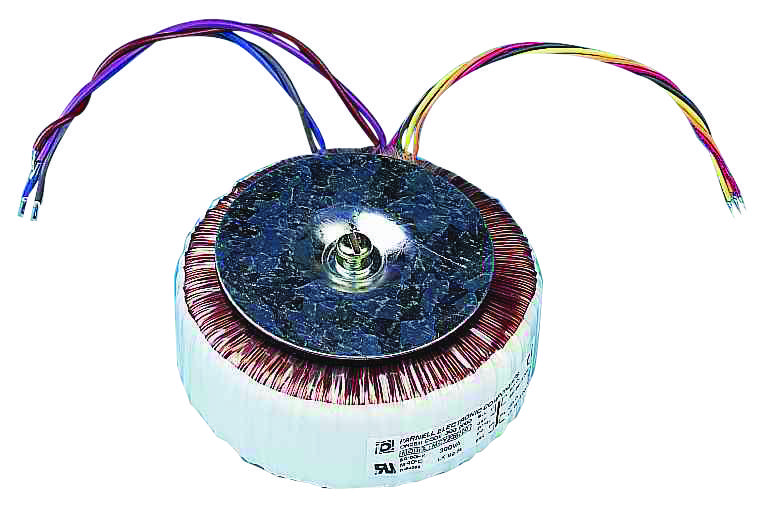

MULTICOMP PRO MCTA22512 Toroidal Transformer
The Multicomp MCTA series are versatile toroidal transformers with flexible leads and dual primary windings compatible with 115VAC or 230VAC at 50/60Hz. They feature dual secondary windings ranging from 2 x 6VAC to 2 x 55VAC, which can be connected in series, parallel, or used separately to suit various industrial applications. Constructed for durability, these transformers are double insulated with UL and RoHS compliance, and are electrically and flash tested. They include mounting plates, foam pads, screws, nuts, and washers for easy installation, making them ideal for power management and automation projects.
MULTICOMP PRO MCTA22512 Toroidal Transformer Specifications:
- Power ratings: 15VA to 1000VA
- Primary voltage: 115VAC or 230VAC ±10%
- Secondary voltage: 2 x 6VAC to 2 x 55VAC
- Lead insulation: Double insulated PVC, tinned ends
- Winding wire: Class H (180°C), insulation system: Class B (130°C), Leadout insulation: Class A (105°C)
- Standards: EN61558-1, UL recognized (E115159 family approval)
- Physical dimensions vary with model, typical weight from 0.33kg to 7.48kg
- Terminals rated 600V/105°C, UL listed, RoHS compliant
Buy the Buy Multicomp General Purpose Toroidal Transformer Part Number MCTA22512 Online
Purchase the Multicomp Series22512 toroidal transformer online to seamlessly enhance your power management solutions. Crafted for durability, efficiency, and safety, this transformer features dual primary and secondary windings, flexible leads, and is UL and RoHS compliant. It is perfect for industrial automation, power supplies, and control systems. Easy to install with included mounting plates, foam pads, and hardware. Get reliable, high-performance power conversion today by ordering online and experience fast delivery, competitive pricing, and dedicated customer support.
Order your Multicomp Series22512 toroidal transformer today and ensure reliable high-quality power supply for your industrial and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTA22512?
You can click on the BUY or RFQ button to purchase MCTA22512 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTA22512?
You can download the MCTA22512 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTA22512?
MULTICOMP PRO
