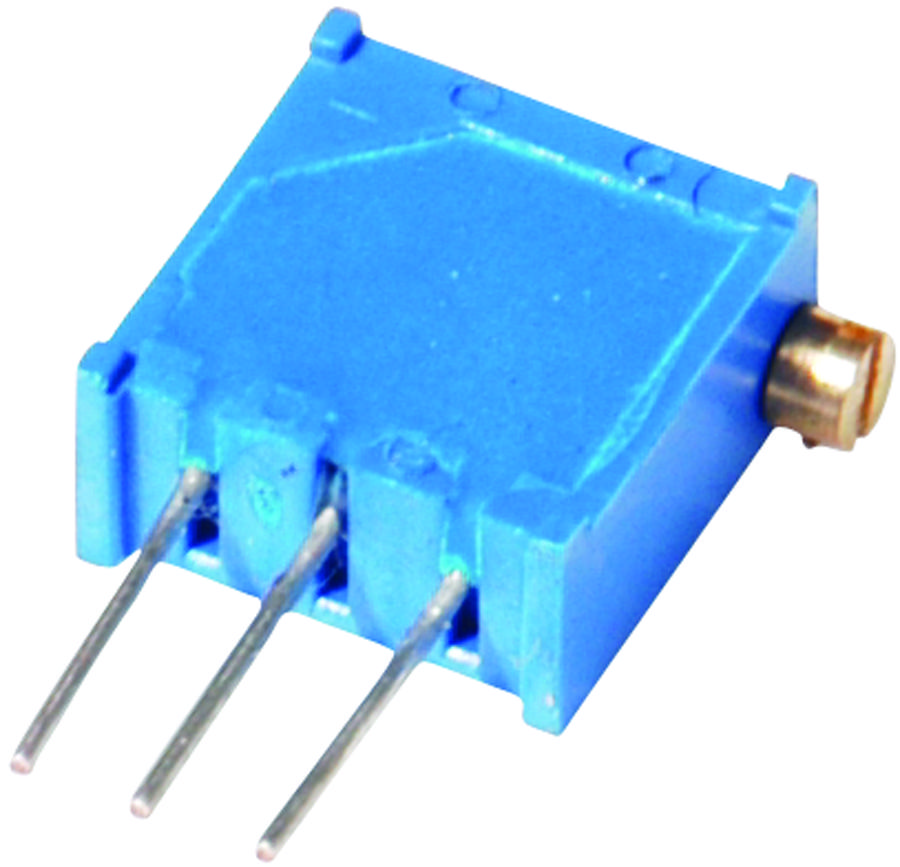

MULTICOMP PRO MCWIW1029P103LF Multi-turn Trimmer Potentiometer
The MCWIW1029-X-102-LF is a multi-turn trimmer potentiometer designed for precise electronic adjustments, featuring a 9mm square form factor, solderable pins, and a 25-turn rotation. Ideal for applications requiring fine calibration, it supports infinite resolution and operates across temperatures from -55°C to +125°C. Equipped with a maximum torque of 36 mN·m, it offers durability with 200 rotational cycles. The component has an insulation resistance of at least 1000 MΩ at 500 VDC, with a power rating of 0.5 Watt at 70°C, making it suitable for industrial and control applications.
MULTICOMP PRO MCWIW1029P103LF Multi-turn Trimmer Potentiometer Specifications:
- Resistance range: 100Ω to 500kΩ based on part number
- Type: Multi-turn, 25 turns
- Form factor: 9mm square
- Adjustability: Infinite resolution
- Torque: 36 mN·m max.
- Rotational life: 200 cycles
- Temperature range: -55°C to 125°C
- Power rating: 0.5 Watt at 70°C, 0 Watt at 125°C
- Insulation Resistance: ≥1000 MΩ at 500 VDC
- Dielectric Strength: 300V max.
- Solderable terminals for through-hole mounting
- Environmental resistance: Vibration 2.98 m/s², Shock 2.39 m/s²
- Wiper: Finger-adjustable with mechanical stops
- Dimensions: 9mm x 9mm square, height based on model
Buy the Multicomp Series Trimmer Potentiometer: MCWIW1029P103LF
Enhance your electronic control systems with the high-precision Multicomp Series Multi-turn Trimmer Potentiometer. This 25-turn, 9mm square component offers infinite resolution for accurate calibrations. It features solderable pins, a maximum torque of 36 mN·m, and operates within a wide temperature range of -55°C to +125°C. With a power rating of 0.5 Watt at 70°C, it ensures durability and consistent performance in industrial and control applications. Order online now and ensure your projects benefit from reliable, high-quality adjustments.
Order your Multicomp Series Trimmer Potentiometer MCWIW1029P103LF today and give your electronics projects the dependable precision they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWIW1029P103LF?
You can click on the BUY or RFQ button to purchase MCWIW1029P103LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWIW1029P103LF?
You can download the MCWIW1029P103LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWIW1029P103LF?
MULTICOMP PRO
