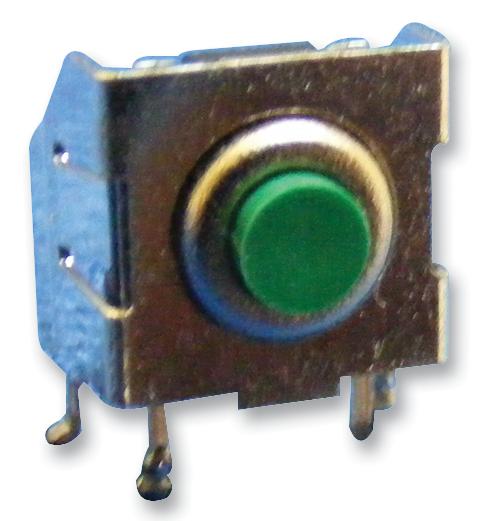

MULTICOMP PRO MCTA33R2V Tactile Right Angle Switch
The tactile right-angle switch features a 2.3mm contact travel with a stainless steel stem and nylon high-temperature thermoplastic body, rated for 200,000 cycles. It operates within -25°C to +70°C, with a maximum operating temperature of 255°C during reflow soldering. The switch has a 1.5mA, 5V DC electrical life, with a Max. contact resistance of 100mΩ and insulation resistance of 100MO at 500V DC. Its compact design includes an 1 pole 1 throw contact configuration, RoHS compliance, and is suitable for reliable industrial and commercial applications.
MULTICOMP PRO MCTA33R2V Tactile Right Angle Switch Specifications:
- Operating Force: 180 +50gf, white (WW), 260 +50gf, red (R)
- Minimum Stroke: 0.15mm
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Electrical Life: 200,000 cycles
- Rating: 1.5mA, 5V DC
- Max. Contact Resistance: 100mΩ
- Min. Insulation Resistance: 100MO at 500V DC
- Dielectric Strength: 250V AC/1 minute
- Contact Arrangement: 1 pole 1 throw
- Material: Stainless steel stem, nylon high-temperature thermoplastic body
- Color: White (180gf), Red (260gf)
- Contact Material: Silver-plated stainless steel
- Seal: Silicone rubber
- Base: Nylon high-temperature thermoplastic
- Terminal:Soldering process: hand and reflow soldering (max 260°C)
- RoHS compliant
Buy the Multicomp:ro – Reliable Tactile Switch for Industrial Applications
Purchase the high-quality tactile right angle switch online today. Designed for durability, precision, and reliability, this switch offers 200,000 cycles and RoHS compliance. Its stainless steel stem and thermoplastic body ensure longevity in demanding industrial settings. Ideal for automation, control panels, and electronic applications, it provides a perfect balance of sensitivity and durability. Secure your supply now with fast delivery options, ensuring your projects stay on schedule while benefiting from trusted performance and worldwide availability.
Get Multicomp:ro tactile switch today—built for precision and long-lasting durability with reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTA33R2V?
You can click on the BUY or RFQ button to purchase MCTA33R2V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTA33R2V?
You can download the MCTA33R2V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTA33R2V?
MULTICOMP PRO
