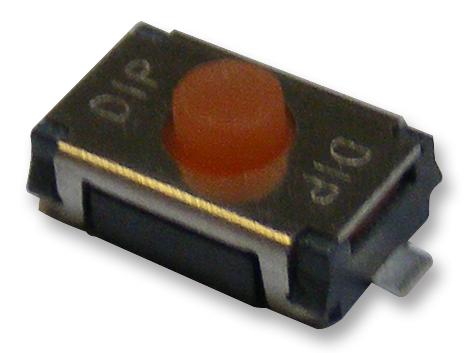

MULTICOMP PRO MCTAEF25RV Tactile Switch
The MCTAEF-25R-V is a compact, flat lead tactile switch measuring 3.8 x 6 mm with a thin profile of 2.5 mm height, suitable for industrial and electronic applications. It features a soft actuator with long travel, silver-plated phosphor bronze contacts for reliable switching, and a high-temperature resistant LCP thermoplastic base. Capable of handling 50mA at 12VDC, it offers excellent electrical performance with a contact resistance of 100 milliohms and insulation resistance exceeding 100 megaohms. Designed for durability, it has an operating life of up to 200,000 cycles and operates reliably between -40°C to +85°C, suitable for various operational environments.
MULTICOMP PRO MCTAEF25RV Tactile Switch Specifications:
- Size: 3.8 x 6 mm, thickness: 2.5 mm
- Contact Arrangement: SPST
- Contact Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: > 100MQ Min. 100V DC
- Dielectric Strength: 250V AC/1 min
- Operating Force: 200gf (Brown), 300gf (Red), 450gf (Salmon)
- Travel: 0.3mm (Brown), 0.35mm (Red), 0.45mm (Salmon)
- Operating Life: 200,000 cycles (Brown/Red), 100,000 cycles (Salmon)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Material: Silver-plated contacts, high-temperature LCP thermoplastic base
- RoHS Compliant
Buy the Multicomp Pro Series Tactile Switch: MCTAEF-25R-V
Purchase the Multicomp Pro tactile switch online today to benefit from high durability, reliable electrical contact, and a compact design suitable for various control applications. Featuring a flat lead design and silver-plated contacts, this switch ensures consistent performance over extended cycles. Its operating temperature range of -40°C to +85°C makes it ideal for demanding environments. With fast delivery, excellent customer support, and competitive pricing, buying online simplifies your procurement process and guarantees you quality and performance for your electronic or industrial projects.
Buy Multicomp Pro MCTAEF-25R-V now and experience unmatched reliability and performance for your industrial electronics projects.
