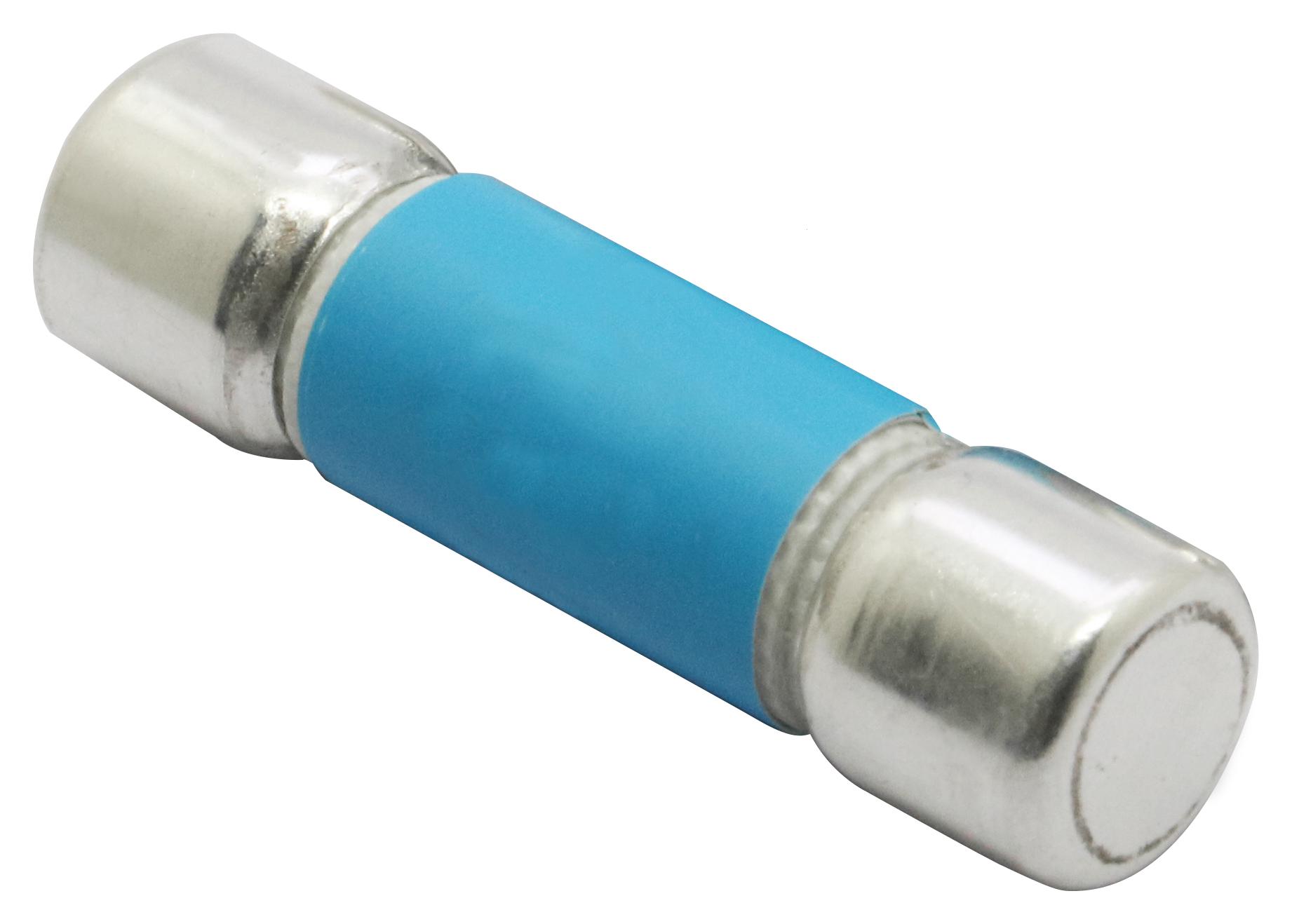

MULTICOMP-PRO MP008153 PV Fuse
This cylindrical fuse is designed for high-power photovoltaic (PV) applications, with a size of 10mm x 38mm and rated for 1100V DC. It features silver-plated caps for enhanced conductivity and is approved under IEC 60269-6 and UL 248-19 standards, with a breaking capacity of up to 30 kA. Suitable for current ratings from 1A to 32A, it offers fast response times with a time constant of 1ms to 3ms. Its robust glass-fiber construction ensures durability in demanding environments, making it ideal for inverter, PV combiner, and junction box protection. Customizable options are available for specialized needs.
MULTICOMP-PRO MP008153 PV Fuse Specifications:
- Size: 10mm x 38mm
- Rated Voltage: 1100V DC
- Rated Current: 1A to 32A
- Breaking Capacity: 30 kA at 1100V DC (IEC) and UL approved
- Time Constant: 1ms to 3ms
- Construction: Glass-fiber with silver-plated caps
- Certifications: IEC 60269-6, UL 248-19
- Pre-Arcing I2t: 20-2100 (Amps squared seconds)
- Dissipation: 20-240W depending on current rating
- Applicable for inverters, PV junction boxes, battery charge controllers
Buy the Multicomp Series PV Fuse: 10mm x 38mm 1100V DC 1A-32A Part MP008153
Purchase the Multicomp PV fuse MP008153 online today for your high-power photovoltaic systems. Designed for durability and quick response, this fuse provides reliable protection for inverters, junction boxes, and battery controllers. The 10mm x 38mm size combined with a 1100V DC rating makes it ideal for demanding solar applications. Features include silver-plated caps for enhanced conductivity, UL and IEC approval standards, and a high breaking capacity of up to 30 kA. Designed specifically for durability in rugged outdoor environments, ensuring long-lasting performance in renewable energy setups.
Get Multicomp Series PV fuse MP008153 today—built for high-power solar and inverter protection with fast response and reliable operation.
