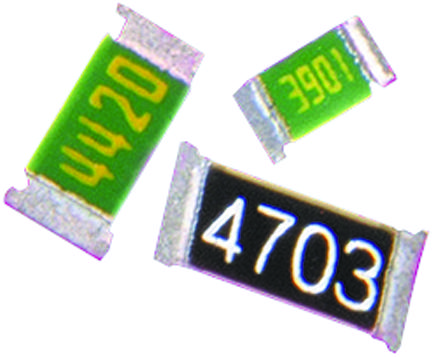

MULTICOMP PRO MCTC0525B1053T5G high-power resistor
This high-power chip resistor offers excellent pulse-withstanding performance suitable for demanding industrial and electronic applications. It operates reliably within a temperature range of -55°C to 155°C, with a resistance tolerance of ±0.1% and industry-standard ppm/°C temperature coefficient of ±25ppm/°C. With a maximum working voltage of 100V, it is ideal for power-sensitive circuits. The resistor is RoHS compliant, features reliable termination layers, and is rated 1/8W at 70°C. Its construction includes a high-purity alumina substrate with silver resistive elements and Ni barrier terminations, ensuring durability and consistent performance.
MULTICOMP PRO MCTC0525B1053T5G high-power resistor Specifications:
- Case Size: 0805
- Power Rating at 70°C: 0.125W
- Max. Working Voltage: 150V
- Max. Overload Voltage: 300V
- Dielectric Withstanding Voltage: 500V
- Temperature Range: -55°C to +155°C
- Resistance Tolerance: 0.1%
- Resistance Range: 109 to 1MΩ
- Coating: G2 coating
- Termination Layers: Sn (Outer), Ni Barrier (Middle), Ag (Inner)
- Construction: High purity alumina substrate with resistive element
- Effective Nominal Resistance Series: E-24, E-96
- Resistance Tracking: 25 PPM/°C
- Solderability: >95% coverage
- Soldering Temperature: 260°C ±5°C for 10±1 seconds
- Reliability Testing: Load life >7,000 hours at 70°C with 1.5 hours on / 0.5 hours off cycles
- Humidity test: 40°C, 90-95% RH for 1000 hours
Buy the Multicomp High-Precision Resistance – Reliable Industrial Chip Resistor for Power Circuits
Secure your high-power chip resistor online today from our extensive selection. With industry-standard tolerance, excellent pulse-withstanding, and reliable operation from -55°C to 155°C, this resistor is essential for power management in demanding industrial and electronic equipment. It features RoHS compliance, durable terminations, and a high-purity alumina substrate for excellent stability. Shop now and benefit from fast shipping, trusted quality, and competitive prices—perfect for engineering, manufacturing, and high-performance circuits where reliability is critical.
Order your Multicomp Series MCTC0525B1053T5G high-power resistor today and ensure robust, high-reliability performance in your industrial electronic projects.
