MULTICOMP-PRO MCTC0525B6340T5G High-power Chip Resistor
This high-power chip resistor offers excellent pulse withstandance and reliable performance. It features a maximum working voltage of 100V, a tolerance of ±0.1%, and an industry-standard temperature coefficient of ±25ppm/°C. Designed to operate within a temperature range of -55°C to 155°C, it is suitable for demanding electronic applications. The product is manufactured by Multicomp Pro, which has a rating of 4.6 out of 5 stars, with a 12-month limited warranty. Customers highly recommend this resistor for its quality and durability.
MULTICOMP-PRO MCTC0525B6340T5G High-power Chip Resistor Specifications:
- Case Size: 0805
- Power Rating at 70°C: 0.125W
- Max. Working Voltage: 100V
- Resistance Range: 109 to 1MΩ
- Resistance Tolerance: ±0.1%
- Temperature Coefficient: ±25ppm/°C
- Temperature Range: -55°C to +155°C
- Ambient Temperature: 270°C
- Dielectric Withstanding Voltage: 500V
- Construction: High purity Alumina substrate, Sn outer termination, Ni barrier middle termination, Ag resistive element inner termination
- Dimensions: Length: 1.75mm, Width: 0.55mm, Height: 0.30mm
- Marking: Industry standard codes
- Solderability: 95% coverage, 245°C dipping
- Soldering Heat: 260°C for 10 sec
- Compliance: RoHS

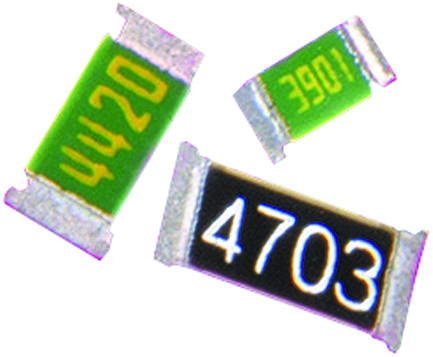

Buy the Multicomp Series MCTCOS Chip Resistor: 6340T5G
Purchase the high-power chip resistor designed for demanding electronics applications online today. Featuring 100V maximum operational voltage, ±0.1% resistance tolerance, and a temperature range from -55°C to 155°C, it offers excellent pulse withstandance and reliability. Manufactured with industry-standard construction and RoHS compliance, this resistor ensures high performance and durability in your electronic designs. Order now to benefit from fast delivery and secure your supply of this essential high-quality component for your manufacturing or repair needs.
Get Multicomp Series MCTCOS 6340T5G high-power chip resistor today—built for precision and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTC0525B6340T5G?
You can click on the BUY or RFQ button to purchase MCTC0525B6340T5G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC0525B6340T5G?
You can download the MCTC0525B6340T5G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTC0525B6340T5G?
MULTICOMP-PRO
