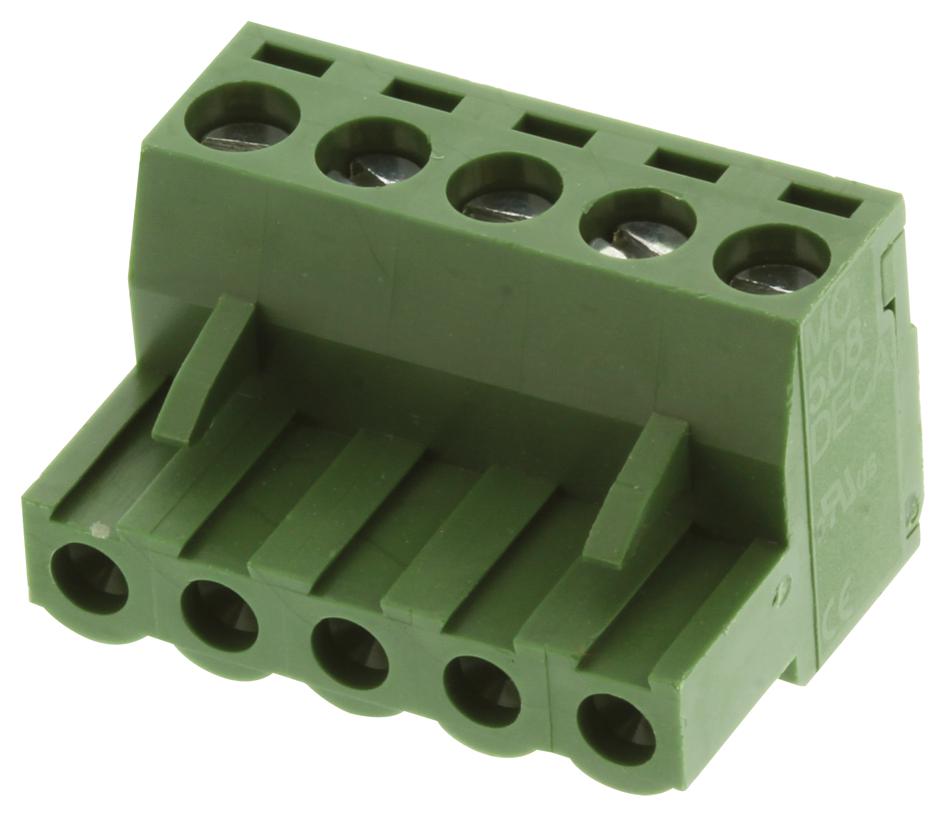

MULTICOMP PRO MCTC10D05 Pluggable Terminal Block
The MCTC-10D05 is a versatile 5-position pluggable terminal block designed for efficient electrical connections in industrial settings. Featuring a durable polyamide 66 housing, it ensures longevity and resistance to high temperatures. The terminal incorporates tin-plated phosphor bronze contacts and a zinc-plated steel M3 screw, making installation secure and maintenance straightforward. Suitable for wire sizes from 4 AWG to 12 AWG, it operates reliably within -40°C to 105°C. Its compact design, rated for 16A, makes it ideal for automation and control systems requiring modular wiring solutions.
MULTICOMP PRO MCTC10D05 Pluggable Terminal Block Specifications:
- Rated Voltage: 00V AC
- Rated Current: 6A
- Wire Size: 4 AWG to 12 AWG
- Housing Material: Polyamide 66
- Contact Material: Phosphor bronze, tin plated
- Screw Material: Steel, zinc plated, M3
- Operating Temperature: -40°C to +105°C
- Torque: 7 lb-inch
- Dimensions: Length 25.4 mm (1 inch), width varies with model, typical height 40.6 mm (1.6 inches)
Buy the Multicomp Series Pluggable Terminal Block: MCTC10D05
Order the Multicomp MCTC10D05 pluggable terminal block online today for high-quality electrical connections in industrial applications. Featuring a polyamide 66 housing, tin-plated phosphor bronze contacts, and zinc-plated steel screws, this 5-position terminal block supports wire sizes from 4 to 12 AWG. It operates reliably from -40°C to 105°C and is rated for 16A, making it ideal for control panels, automation systems, and modular wiring projects. Secure your electrical setup with this durable and easy-to-install terminal block available now for fast delivery.
Get Multicomp MCTC10D05 today—built for durability and reliable electrical connections in industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTC10D05?
You can click on the BUY or RFQ button to purchase MCTC10D05 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC10D05?
You can download the MCTC10D05 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTC10D05?
MULTICOMP PRO
