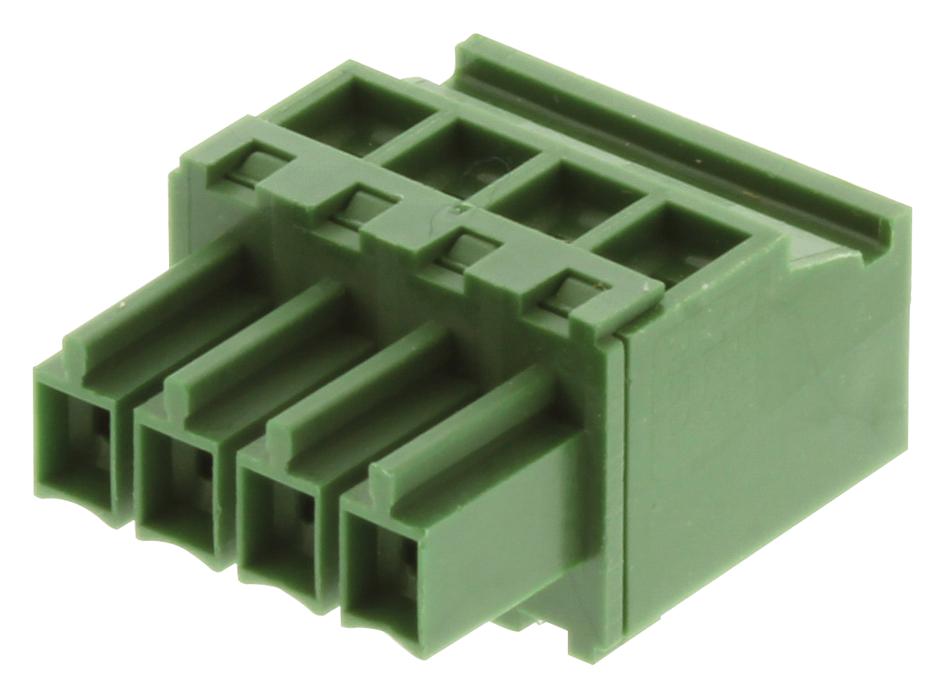

MULTICOMP PRO MCTC52A04 Pluggable Terminal Block
The pluggable terminal block plug from multicomp features a 3.5 mm pitch and offers reliable electrical connections suitable for various electronic applications. Designed with a polyamide 66 housing, brass cage clamps, and phosphor bronze contacts, this connector provides excellent durability and corrosion resistance. It supports wire sizes from 24 to 16 AWG and operates within a temperature range of -40°C to +105°C, making it suitable for demanding environments. Easy to install, this terminal block ensures secure, removable connections in compact electrical and electronic systems.
MULTICOMP PRO MCTC52A04 Pluggable Terminal Block Specifications:
- Wire size: 24 to 16 AWG
- Housing material: Polyamide 66
- Cage clamp: Brass, Ni plated
- Contact: Phosphor bronze, tin plated
- Screw size: M2, steel, Ni plated
- Operating temperature: -40°C to +105°C
- Torque: 3 Ib-inch
- Pitch size: 3.5 mm
- Number of positions: 2 to 12 (various models)
- Part Numbers: MCTC-52A02 to MCTC-52A12
- Designed for secure and removable electrical connections
Buy the Buy multicomp Pluggable Terminal Block Part Number MCTC-52A04 Online
Order the multicomp Pluggable Terminal Block with a 3.5 mm pitch online today. This high-quality connector supports 24-16 AWG wires, features a durable polyamide housing, brass cage clamp, and tin-plated phosphor bronze contacts. It operates from -40°C to +105°C, ensuring reliable performance in harsh environments. Easy to install with M2 screws, it provides secure, removable connections suitable for a wide range of electronic applications. Purchase now for precise and durable wiring solutions.
Get multicomp MCTC-52A04 today—designed for reliable, secure, and easy electronic wiring connections in compact systems.
