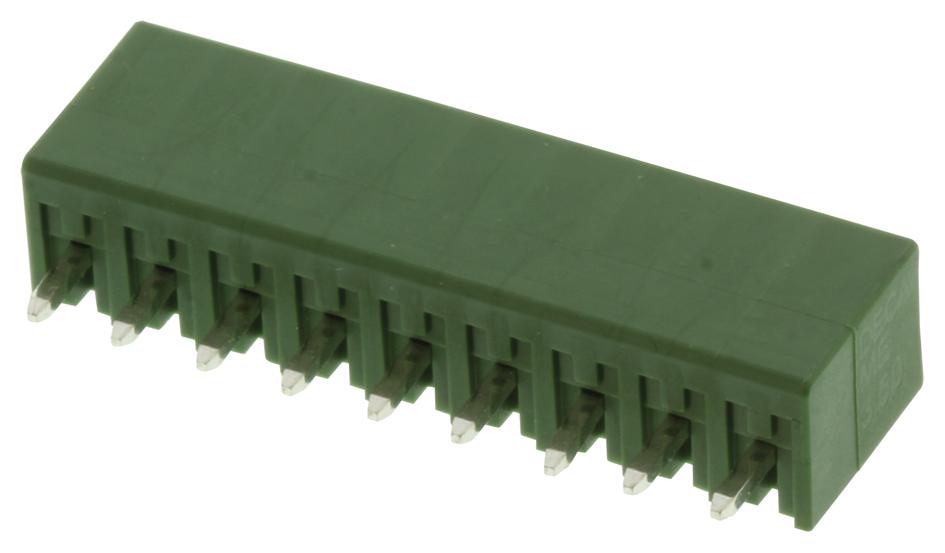

MULTICOMP PRO MCTE04A09 Pluggable Terminal Block
The pluggable terminal block with a 3.5mm pitch from multicomp pro is designed for reliable electrical connections in industrial and electronic applications. Made from durable polyamide 66 housing material, it features a vertical header with closed ends for secure, safe connections. The solder pins are brass, tin-plated, measuring 0.8mm for easy soldering. Operating within -40°C to +105°C, it supports rated voltage of 150V AC and current of 2A, with PCB hole diameter of 1.3mm. Available in different positions, it is suitable for various wiring and circuit needs.
MULTICOMP PRO MCTE04A09 Pluggable Terminal Block Specifications:
- Rated Voltage: 150V AC
- Rated Current: 2A
- Housing Material: Polyamide 66
- Solder Pin: 0.8mm, brass, tin plated
- Operating Temperature: -40°C to +105°C
- PCB Hole Diameter: 1.3mm
- Pitch Size: 3.5mm
- Number of Positions: 4, 5, 8, 9, 12
- Dimensions vary according to number of positions, e.g., MCTE-04A09 measures 32.1mm length
- Part number variations indicate different position counts, from 4 to 12
Buy the Multicomp Series Pluggable Terminal Block: MCTE04A09
Order the multicomp series pluggable terminal block MCTE04A09 online today for high-quality, durable wiring solutions suitable for industrial, control panels, and automation systems. With a 3.5mm pitch, rated 150V AC and 2A, it features a vertical header with closed ends for secure connections. Made from polyamide 66 housing and brass tin-plated solder pins, it operates efficiently between -40°C and +105°C. Perfect for various wiring configurations, available with different contact positions to match your application's requirements.
Buy multicomp series pluggable terminal block MCTE04A09 now and ensure secure, reliable electrical connections with durable construction and precise specifications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTE04A09?
You can click on the BUY or RFQ button to purchase MCTE04A09 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTE04A09?
You can download the MCTE04A09 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTE04A09?
MULTICOMP PRO
