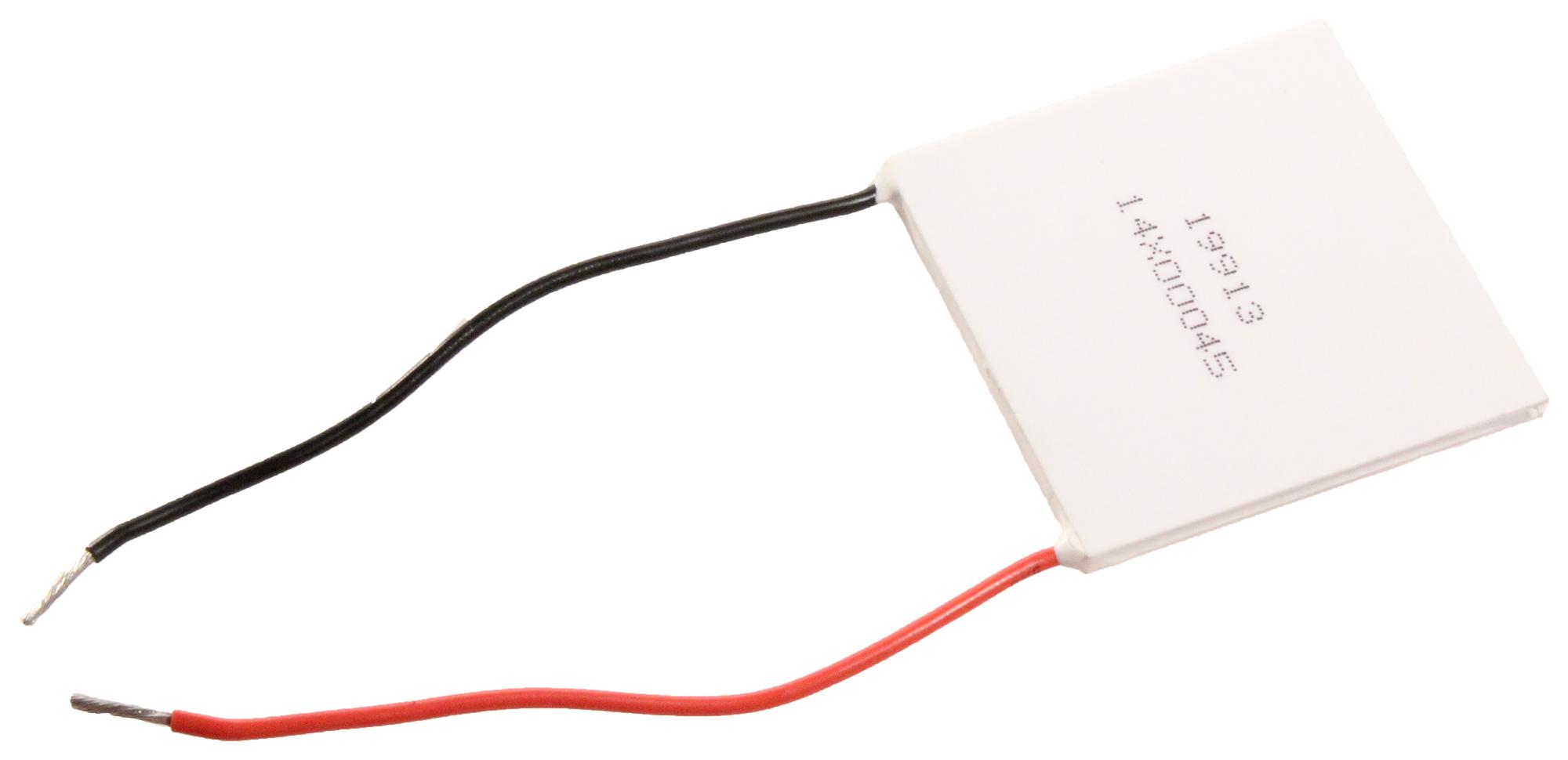

MULTICOMP PRO MCTE119913LS Thermoelectric Cooling Module
This high-performance thermoelectric module is designed for efficient cooling of sensitive electronic components such as infrared detectors, microwave ICs, and fiber-optic lasers. Featuring a maximum cooling capacity of 200W at 27°C, it operates within -40°C to +90°C and includes moisture protection through silicone sealing. The module's dimensions are 50mm x 50mm, with a maximum voltage of 24.1V and current of 13A at optimal temperature differences. Its robust construction and thermal reliability make it ideal for precision cooling applications requiring compact and efficient solutions.
MULTICOMP PRO MCTE119913LS Thermoelectric Cooling Module Specifications:
- Maximum cooling capacity: 200W at 27°C
- Maximum voltage: 24.1V at AT max.
- Maximum current: 13A at AT max.
- Dimensions: 50mm x 50mm x 3.5mm
- Operating temperature range: -40°C to +90°C
- Solder melting point: 138°C
- Maximum compression: 98.07N / cm² (10kgf / cm²)
- Internal resistance: 1.40Ω ±10%
- Maximum temperature difference: 68°C at maximum voltage
- Safe handling and thermal grease recommended
- Silicone sealed for moisture protection, flatness within 0.02mm
Buy the Buy Multicomp Thermoelectric Module Part Number MCTE119913LS Online
Discover the reliable and efficient thermoelectric cooling module from Multicomp, offering 200W cooling capacity, moisture sealing, and a compact 50x50mm size. Perfect for cooling infrared detectors, microwave ICs, and fiber lasers, this module supports a wide temperature range from -40°C to +90°C, ensuring optimal operation in demanding environments. Easy to install with thermal grease, it features a maximum voltage of 24.1V and a current of 13A. Perfect for precision thermal management, boosting performance, and safeguarding sensitive electronics in various industrial and scientific applications.
Buy Multicomp thermoelectric module MCTE119913LS now and experience reliable, high-efficiency cooling for sensitive electronic components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTE119913LS?
You can click on the BUY or RFQ button to purchase MCTE119913LS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTE119913LS?
You can download the MCTE119913LS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTE119913LS?
MULTICOMP PRO
