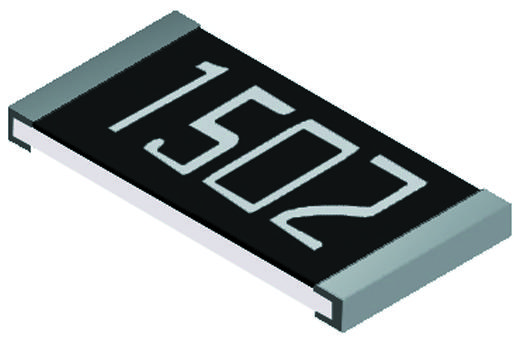

MULTICOMP PRO MCTF0805BTC1202 Precision Resistor
The MCTF series thin film NiCr passivated resistor offers a wide resistance range with very tight tolerances from ±0.01% up to 1%. These resistors are designed for high accuracy and reliability, making them suitable for precision electronic applications such as medical equipment, testing measurement devices, and communication systems. They feature advanced thin film technology, extremely low Temperature Coefficient of Resistance down to +5PPM/°C, and operate within a temperature range of -55°C to +155°C. The resistor construction includes an alumina substrate, Ag-Pd and NiCr electrodes, epoxy overcoat, and precise dimensions for surface-mount compatibility, rated at 1/10W power at 70°C.
MULTICOMP PRO MCTF0805BTC1202 Precision Resistor Specifications:
- Power Rating at 70°C: 1/10W
- Operating Temperature Range: -55°C to +155°C
- Max Operating Voltage: 100V
- Overload Voltage: 200V
- Resistance Range: 4.70Ω to 1MΩ
- Tolerance: ±0.01% to ±1%
- TCR: +5PPM/°C
- Dimensions (L x W x T): 2.4mm x 1.25mm x 0.15mm
- Construction: Alumina substrate, Ag and NiCr electrodes, epoxy overcoat
- RoHS Compliant
- Marking: Z 4992, EA
- Packaged in paper tape suitable for pick-and-place machines
- Designed for high reliability and precision in electronic circuits
Buy the Multicomp Thin Film - Reliable NiCr Precision Resistors for Industrial Applications
Enhance your electronic designs with the high-precision Multicomp Thin Film Resistor. Featuring ultra-tight tolerances down to ±0.01% and a low TCR of +5PPM/°C, this resistor ensures maximum stability and reliability in critical applications. With a resistance range from 4.70Ω to 1MΩ and operating within -55°C to +155°C, it is perfect for industrial, medical, and testing devices requiring exact measurement. Easy to surface-mount using tape packaging, it offers consistent performance and durability for demanding environments.
Order your Multicomp Series MCTF0805BTC1202 high-precision thin film resistor today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTF0805BTC1202?
You can click on the BUY or RFQ button to purchase MCTF0805BTC1202 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTF0805BTC1202?
You can download the MCTF0805BTC1202 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTF0805BTC1202?
MULTICOMP PRO
