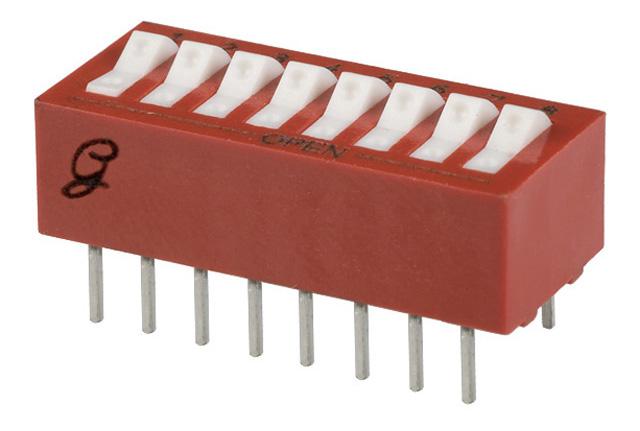

MULTICOMP PRO MCTIIR08T 8 Circuit DIP Switch
The Multicomp Pro DIP / SIP Switch is a reliable, high-quality switch with 8 circuits designed for through-hole mounting and suitable for various electronic applications. It features a slide mechanism with a maximum operating temperature of 85°C, electrical life of 2,000 cycles, and a contact resistance of 100mΩ. Made from UL 94V-0 nylon and LCP thermoplastic, it ensures durability and safety. The switch is rated for 24V DC at 25mA, with dimensions approx. 21.48mm (0.846 inches) in length and 17.78mm (0.7 inches) in width, making it ideal for compact circuit control.
MULTICOMP PRO MCTIIR08T 8 Circuit DIP Switch Specifications:
- Mechanical Life: 2,000 operations
- Max. Operating Force: 1,000gf
- Stroke: 0.8mm
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Electrical Life: 2,000 cycles
- Rating: 24V DC, 25mA
- Max. Contact Resistance: 100mΩ
- Dielectric Strength: 500V AC / 1 minute
- Circuit: 8 positions
- Material - Base and Cover: UL 94V-0 Nylon, UL 94V-0 LCP
- Actuators: Polyamide
- Contact: Alloy copper, gold plated
- Terminal: Brass, gold plated
- Tape: Kapton
- Dimensions: Length 21.48mm (0.846 inches), Width 17.78mm (0.7 inches), height approximately 11.48mm (0.452 inches)
Buy the Multicomp Series DIP Switch: MCTIIR08T
Buy the Multicomp Pro Series 8 Circuit DIP Switch MCTIIR08T online today and ensure reliable circuit switching for your electronic projects. This durable, high-quality switch features 8 positions, rated at 24V DC and 25mA, with a robust thermoplastic body suitable for various environments. Its precise dimensions of approximately 21.48mm in length and 17.78mm in width allow easy integration into compact circuit boards. Designed for high durability, with an electrical life of 2,000 cycles, it offers consistent performance in professional and hobbyist applications. Order now and experience seamless circuit control with trusted quality.
Order your Multicomp Pro Series DIP Switch: MCTIIR08T today and enhance your circuit control with dependable, high-quality switches.
