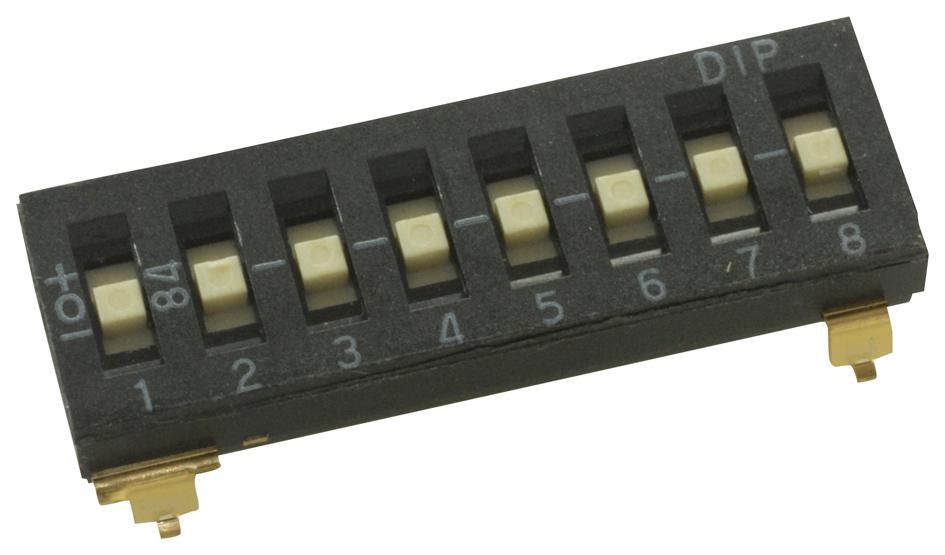

MULTICOMP PRO MCTIMR08 DIP switch
The MCTIMR-08 is a durable and reliable SPDT 8-position tri-state DIP switch designed for industrial applications. It features a recessed actuator for easy operation and surface-mount terminals for compact installation. Made with high-temp UL94V-0 Nylon and LCP thermoplastic, it offers excellent thermal resistance. The switch uses alloy copper contacts with gold plating to ensure low contact resistance and long service life. With a dielectric strength of 500 VAC and a mechanical life of 2,000 operations, it provides consistent switching performance in demanding environments.
MULTICOMP PRO MCTIMR08 DIP switch Specifications:
- Mechanical Life: 2,000 operations
- Operation Force: 1,000gf max
- Stroke: 0.8mm
- Operation Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Electrical Life: 2,000 cycles
- Rating: 25mA, 24V DC
- Contact Resistance: 100mΩ max
- Dielectric Strength: 500V AC/1 minute
- Circuit: 3 switching positions
- Base and Cover Material: UL94V-0 Nylon High-Temp Thermoplastic, Black
- Actuator Material: UL94V-0 LCP High-Temp Thermoplastic, White
- Contact Material: Alloy Copper with gold plating
- Terminal Material: Brass with gold plating
- Part Numbers: MCTIMR-08, MCTIMR-10
- Dimensions: MCTIMR-08 - Length: 21.48mm (0.846 inch), Width: 17.78mm (0.7 inch); MCTIMR-10 - Length: 26.56mm (1.046 inch), Width: 22.86mm (0.9 inch)
Buy the Buy Multicomp DIP Switch Part Number MCTIMR-08 Online
Purchase the high-quality MCTIMR-08 DIP switch online today and ensure reliable performance for your industrial control systems. Featuring 8 circuits with SPDT switching, this surface-mount switch offers durable gold-plated contacts for low resistance and long life. Its high-temp thermoplastic housing guarantees stability in demanding environments. With a dielectric strength of 500V AC and an electrical life of 2,000 cycles, it is ideal for automation, instrumentation, and control applications. Order now to benefit from quick delivery and excellent customer support.
Buy Multicomp MCTIMR-08 now and experience reliable industrial switching with durable gold contacts and high-temperature thermoplastic housing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTIMR08?
You can click on the BUY or RFQ button to purchase MCTIMR08 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTIMR08?
You can download the MCTIMR08 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTIMR08?
MULTICOMP PRO
