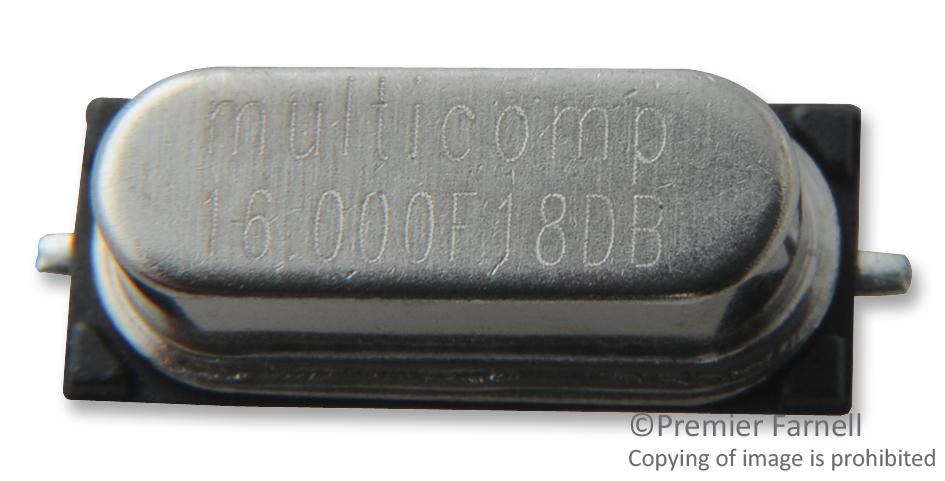

MULTICOMP PRO MCRSD16000F183000RR Crystal Resonator
The MCRSD16000F183000RR is an SMD crystal resonator measuring 11.4 x 4.7 mm, designed for clock and timing applications. It operates in AT-FUND oscillation mode, with an maximum aging of ±3 ppm per year. The device features an insulation resistance of 500 MΩ and an ESR of 40 Ω. Suitable for precise timing needs, it is part of Multicomp Pro's high-quality product line, rated 4.6 out of 5 stars, and comes with a 12-month limited warranty.
MULTICOMP PRO MCRSD16000F183000RR Crystal Resonator Specifications:
- Nominal Frequency: 16MHz
- Oscillation Mode: AT-FUND
- Load Capacitance: 18pF
- Frequency Tolerance at 25°C: +3°C, +30ppm
- Aging: +3ppm per year
- Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Equivalent Series Resistance: <400Ω
- Drive Level: 100μW
- Shunt Capacitance: <5pF
- Insulation Resistance: 2500MΩ
- Test Impedance: KH1200
- Physical Dimensions: 11.4mm x 4.7mm x 3mm
- Lead Strength Test: No damage after 90° bend, 2mm in 10+1 sec
- Vibration Test: 7-10Hz to 500Hz, 0.75mm amplitude, 3 directions
- Drop Test: 3 drops from 75cm onto wooden surface
- Solderability: 2mm into solder bath at 235°C +5°C for 2 +0.5 sec
- Temperature Cycling: -40°C to +85°C, 3 cycles, 24 hours rest
- Life Test (High Temp): 125°C for 72 hours plus 24 hours rest
- Life Test (Low Temp): -55°C for 72 hours plus 24 hours rest
- Humidity: 40°C, 90-95% RH for 96 hours, 24 hours rest
Buy the Multicomp MCRSD16000F183000RR – Reliable Crystal for Industrial Applications
Purchase the high-quality Multicomp crystal resonator MCRSD16000F183000RR online today and enhance your device synchronization with its exceptional stability and precision. Designed for clock, timing, and frequency control applications, this SMD component offers reliable performance over a wide temperature range, with excellent mechanical durability and low ESR. Its compact size fits diverse electronic systems, ensuring easy integration and long-term operational stability. Secure your project’s success by buying this trusted, RoHS-compliant resonator now for hassle-free delivery and technical support.
Order your Multicomp Series MCRSD16000F183000RR crystal resonator today and ensure your projects benefit from dependable timing accuracy and robust environmental resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRSD16000F183000RR?
You can click on the BUY or RFQ button to purchase MCRSD16000F183000RR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRSD16000F183000RR?
You can download the MCRSD16000F183000RR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRSD16000F183000RR?
MULTICOMP PRO
