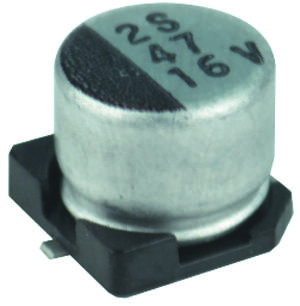

MULTICOMP-PRO MCESL16V106M4X52 Aluminium Electrolytic Capacitor
This surface-mount aluminium electrolytic capacitor is designed for high-density PCBs, offering reliable performance with a 12-month warranty. It guarantees at least 2,000 hours lifespan at 85°C, ensuring durability in demanding environments. Suitable for various applications requiring stable capacitance and low leakage current, it features a wide working voltage range from 4V to 100V, capacitance from 0.1 to 1500uF, and excellent temperature and impedance characteristics. It is supplied with carrier taping for automated assembly, making it ideal for compact electronic devices and high-reliability circuits.
MULTICOMP-PRO MCESL16V106M4X52 Aluminium Electrolytic Capacitor Specifications:
- Operating Temperature Range: -40°C to +85°C
- Working Voltage Range: 4 to 100V
- Capacitance Range: 0.1 to 1500uF
- Capacitance Tolerance: +20% (120 Hz, 20°C)
- Leakage Current: |< 0.01 CV or 3 (UA) whichever is greater (after 2 mins.)
- Max Dissipation Factor at 120Hz, 23°C: 84 to 6.3
- Impedance ratio at -25°C / +20°C: 7, 4, 3, 2, 2, 2, 2, 2, 2
- Impedance ratio at -40°C / +20°C: 15, 8, 8, 4, 4, 3, 3, 3, 3
- Load Life: 2,000 hours at 85°C with capacitance change within +25%, leakage current less than initial specified value
- Shelf Life: 1,000 hours at 85°C with no load, maintaining leakage current and capacitance
- Soldering Resistance: Capacitance change within 10%, leakage current less than initial
Buy the Buy Multicomp Aluminium Electrolytic Capacitor Part Number MCESL16V106M4X52 Online
Enhance your electronic projects with our high-quality surface-mount aluminium electrolytic capacitor. Designed for reliability, it offers 2,000 hours lifespan at 85°C and is suitable for high-density PCBs. Featuring a wide voltage range from 4V to 100V, low leakage current, and superior thermal stability, it ensures your circuits operate flawlessly under demanding conditions. Easy to mount with supplied carrier taping, this capacitor guarantees exceptional performance in all your electronic assemblies. Purchase online today for quick delivery and dependable quality.
Buy Multicomp aluminium electrolytic capacitor MCESL16V106M4X52 now and experience unmatched reliability and performance in your high-density circuits.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCESL16V106M4X52?
You can click on the BUY or RFQ button to purchase MCESL16V106M4X52 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCESL16V106M4X52?
You can download the MCESL16V106M4X52 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCESL16V106M4X52?
MULTICOMP-PRO
