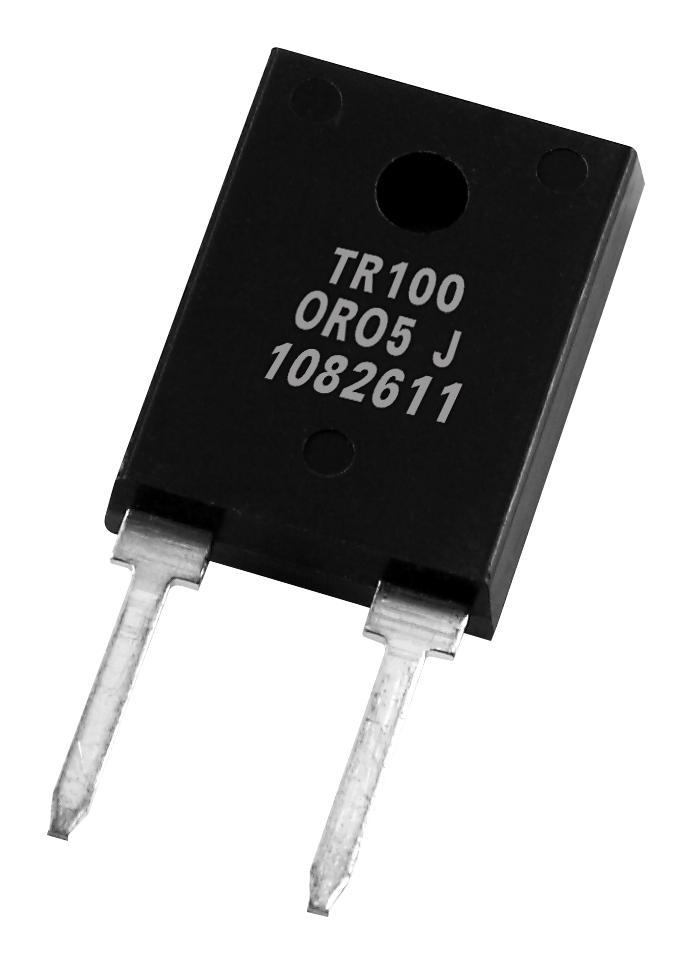

MULTICOMP PRO MCTR100JDD0390 Power Resistor
Power resistors designed for high-wattage applications, featuring a molded case for protection, heat sink mounting, and a non-inductive, electrically isolated TO-247 style package. These resistors handle 100 watts at 25°C case temperature, making them suitable for gate resistors, snubbers, load resistors, and voltage regulation in power supplies. They feature a wide temperature range from -65°C to +175°C, high dielectric strength, low TCR, and excellent environmental resilience, ensuring reliable performance in demanding electrical environments.
MULTICOMP PRO MCTR100JDD0390 Power Resistor Specifications:
- Power Rating: 100W at 25°C case temperature
- Resistance Range: 0.050Ω to 1,000,000Ω
- Tolerance: ±1%, ±5%, ±10% (varies by model)
- Operating Voltage: Max 700V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10GΩ min.
- Temperature Range: -65°C to +175°C
- Lead Material: Tinned Copper; Torque: 0.9 Nm
- Case Material: Molded ceramic case with heat sink mounting
- Dimensions: Approximate length 1.37 inches (34.8 mm), width 0.5 inches (12.7 mm)
- Thermal Management: Designed for heat sink mounting, case contacts center for optimal heat dissipation
- Environmental: Good moisture, thermal shock, vibration, and moisture resistance
- Construction: Alumina substrate, resistor layer, molded case, lead connection
Buy the Multicomp Power Resistors MCTR100: 100W High Power TO-247 Package
Enhance your electrical projects with the robust and reliable high-power resistors. Designed for demanding environments, these resistors handle 100W at 25°C, featuring a molded case for protection and heat sink mounting. Suitable for power supplies, snubbers, and voltage regulation, they offer a wide temperature range from -65°C to +175°C and excellent environmental resilience. Easy to install with Tinned Copper leads and designed for durability, these resistors are your ideal choice for industrial and electronics applications. Order online now for fast delivery.
Order your Multicomp Power Resistors MCTR100 today and enjoy reliable, high-wattage performance for demanding power applications.
