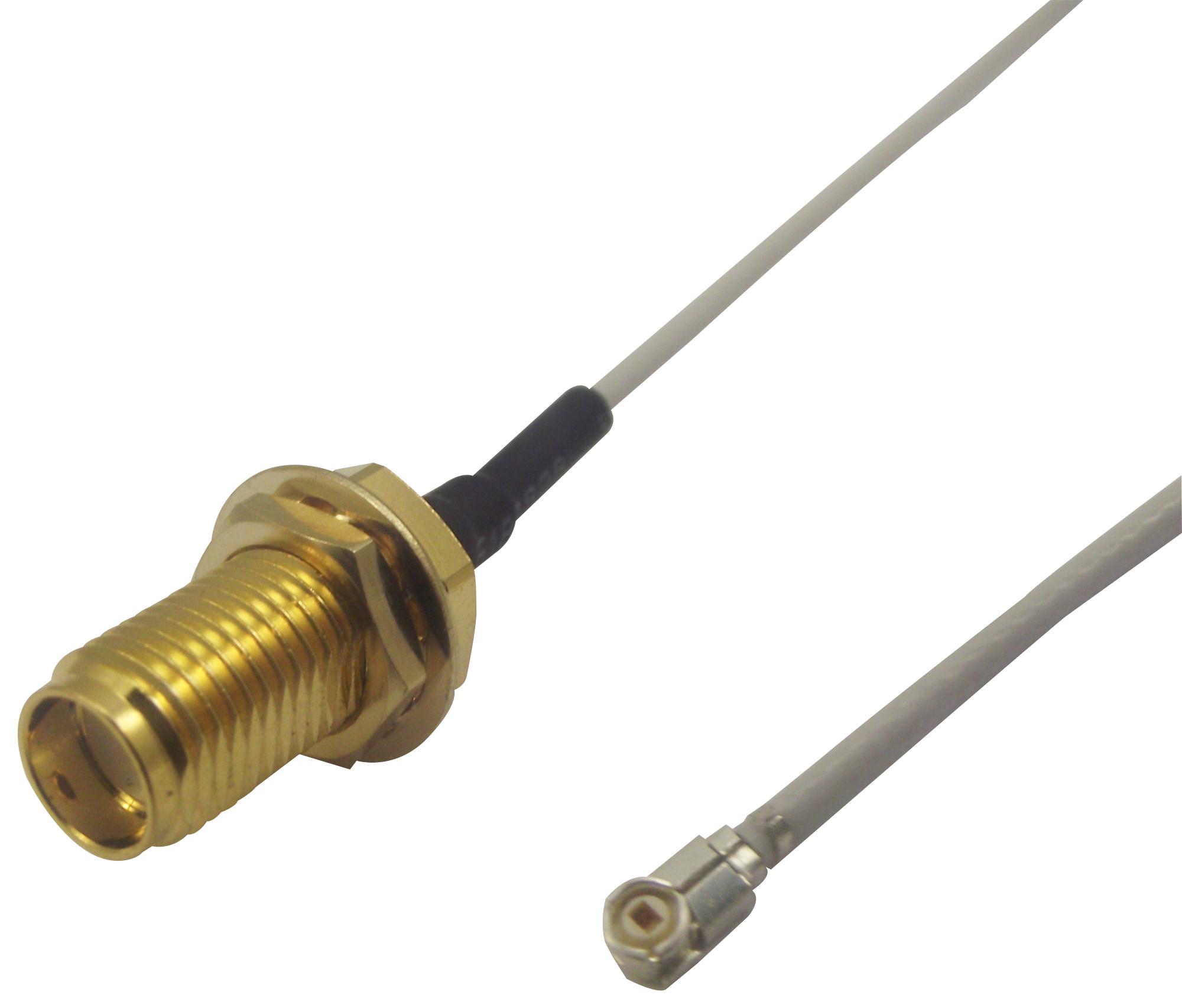

MULTICOMP PRO MC000812 RF Coaxial Cable Assembly

This is a 100mm white RF coaxial cable assembly featuring a 1.37mm low-loss micro coaxial cable. It has an impedance of 50 ohms and supports a frequency range from DC to 3 GHz. The cable is equipped with an SMA bulkhead jack connector on one end and a 90° UFL connector on the other, making it suitable for outdoor RF communication applications. It is rated for a maximum working voltage of 60 V RMS, dielectric withstanding voltage of 200 V RMS, and an insulator resistance of at least 500 MΩ. The assembly has a maximum Voltage Standing Wave Ratio (VSWR) of 1.4:1 and an insertion loss of no more than 0.7 dB. The sheath color is white, and it operates within a temperature range of -20°C to +70°C.

View MC000812Datasheet [pdf]

Buy the Multicomp Series RF Cable: 50Ω DC-3GHz U.FL to SMA Assembly MC000812

Purchase the Multicomp Series RF coaxial cable assembly MC000812 online now for robust RF signal transmission. With a 50Ω impedance and a frequency range up to 3 GHz, this white 100mm cable provides low insertion loss and excellent shielding. Equipped with SMA and UFL connectors, it is suitable for outdoor RF applications. Rated for 60V RMS, it offers high dielectric withstanding voltage and stable performance over temperature. Secure your RF communication needs today with quick online ordering and reliable shipping.

Order your Multicomp Series RF coaxial cable assembly MC000812 today and ensure reliable RF communication with its low-loss design and durable connectors.
