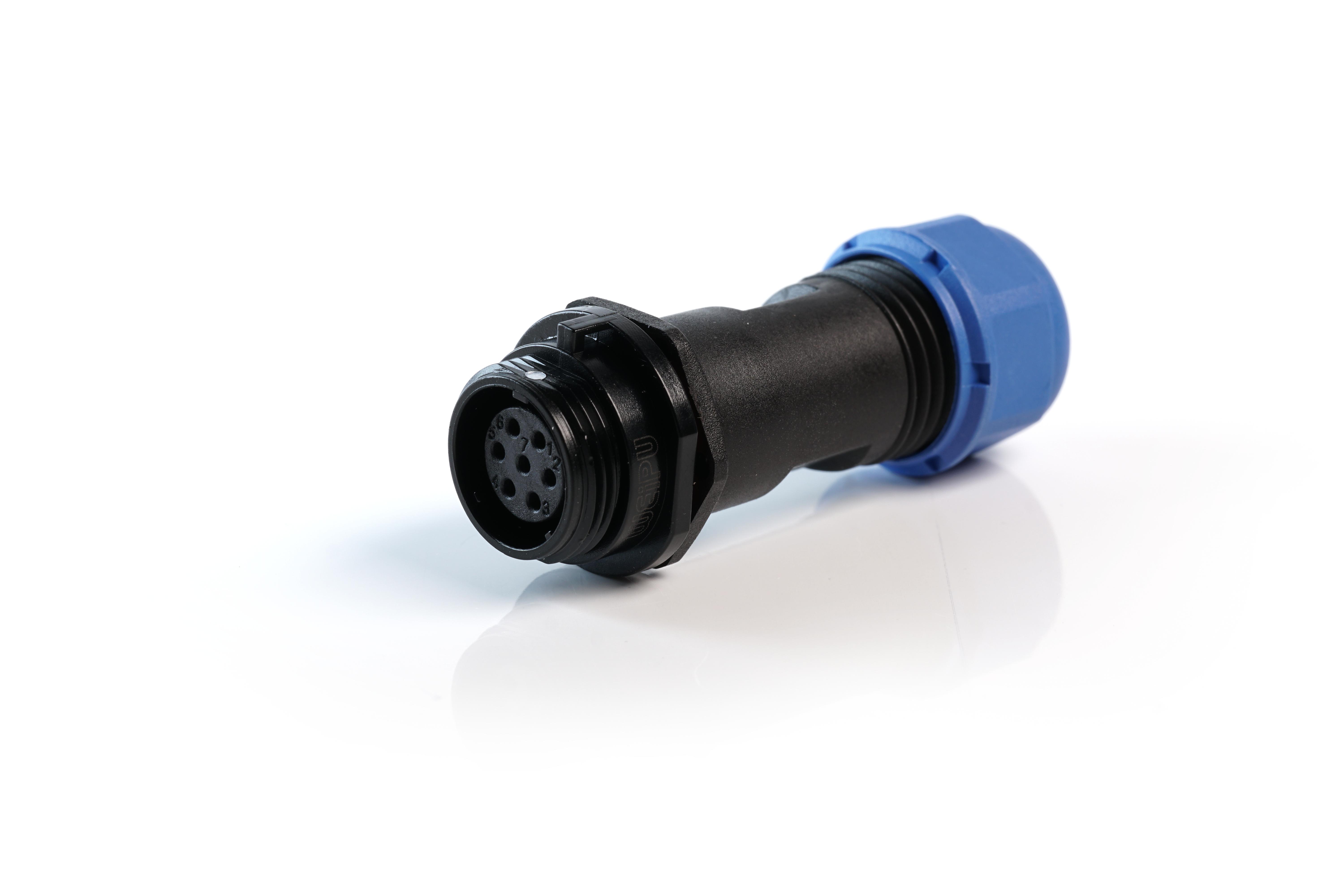

MULTICOMP PRO MP002529 IP68 Circular Connector
The MP-T13 IP68 series features a durable range of connectors with threaded couplings and weatherproof sealing rated at IP68, all housed in a compact design. Available in panel mount, cable mount, and in-line configurations, these connectors facilitate cable-to-panel or cable-to-cable connections, making them suitable for both indoor and outdoor use. They fit a 13mm panel cut-out and utilize solder termination. The series offers versions with 2, 3, 4, 5, and 7 poles, with an optional IP68-rated cap for added protection.
MULTICOMP PRO MP002529 IP68 Circular Connector Specifications:
- IP Rating: IP68
- Shell Material: PC (Polycarbonate)
- Insert Material: PPS (Polyphenylene Sulfide), Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- Coupling Type: Threaded
- Compatible with Panel Cutout: 13mm
- Mating Cycle: 500 cycles
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Diameters: 1.6mm (2 contacts), 1mm (3-5 contacts), 1mm (7 contacts)
- Rated Current: 13A (2 contacts), 5A (3-7 contacts)
- Rated Voltage: 250V (2/3 contacts), 200V (4 contacts), 180V (5 contacts), 125V (7 contacts)
- Test Voltage: 1500V (2/3 contacts), 1000V (4-7 contacts)
- Cable Outer Diameter Range: 4mm to 8mm
- Mating Faces: Male and female options available
- Dust Cap: Compatible with receptacle and plug connectors, with specific caps for 5mm to 8mm diameters
Buy the Multicomp Pro MP002529 – Reliable IP68 Connectors for Industrial Applications
Order the IP68 circular connector series by Multicomp Pro now and ensure your industrial or outdoor connections are weatherproof, reliable, and easy to install. Designed for rugged use with metallic contacts and a robust housing, these connectors provide secure cable and panel connections with threaded coupling and solder termination for durability. Available in multiple configurations, including in-line, panel, and cable mount, they support various pin counts from 2 to 7, suitable for a wide range of industrial, outdoor, and automation applications. Protect your systems effectively today.
Get Multicomp Pro MP002529 today—built for precision and long-lasting durability in demanding environments.
