MULTICOMP PRO MCTR100JDD0820 Power Resistor

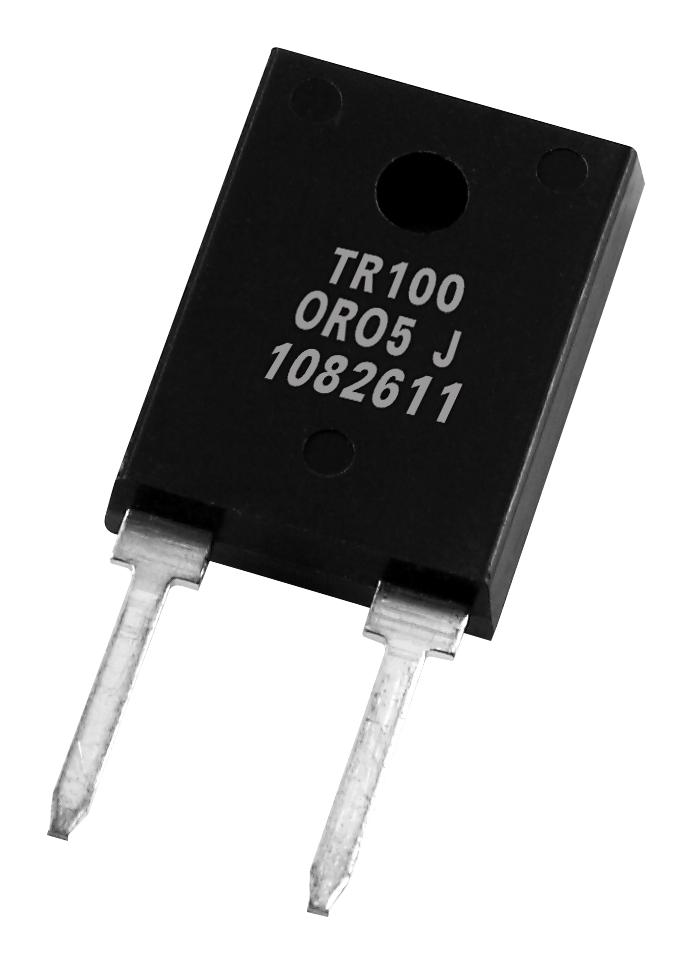

The multicomp power resistor MCTR100JDD0820 is a high-performance, 100-watt component designed for reliable operation in industrial applications. Featuring a molded case for protection, electrical isolation, and a non-inductive design, it is ideal for gate resistors, snubbers, load resistors, terminal resistance, voltage regulation, and UPS systems. Its TO-247 style package facilitates easy heat sink mounting with a single M3 screw. Operating within -65°C to +175°C and featuring a resistance range of 0.050 to 1000KΩ, this resistor provides stable, low-noise performance for demanding power circuits.
MULTICOMP PRO MCTR100JDD0820 Power Resistor Specifications:
- Power Rating: 100 Watts at 25°C case temperature
- Maximum Operating Voltage: 700V
- Dielectric Strength: 1,800V AC
- Resistance Range: 0.050Ω to 1000KΩ
- TCR: ±50, ±100, ±200 PPM/°C
- Temperature Range: -65°C to +175°C
- Construction: Alumina substrate with resistor layer, molded case, lead made of tinned copper
- Dimensions: Refer to datasheet, case designed for TO-247 style mounting
- Environmental Resistance: Load life 2000 hours at rated power, moisture resistance, thermal shock, vibration
- Insulation Resistance: ≥10GΩ
- Certifications: RoHS Compliant
- Operating Frequency: Suitable for high-frequency power applications
- Connection: Single M3 screw mounting, heat sink compatible
- Material: Tinned copper leads, molded protective case
Buy the multicomp 100J – Reliable Power Resistor for Industrial Applications
Order the multicomp power resistor now to ensure reliable, high-performance operation in your industrial applications. With a robust molded case, RoHS compliance, and a power rating of 100W, this resistor is ideal for power supplies, voltage regulation, and UPS systems. Easy to mount with a single screw, it offers stability over a wide temperature range of -65°C to +175°C. Select this resistor for durable, high-quality power management in demanding environments. Purchase online for quick delivery and excellent service.
Buy multicomp 100J high-wattage power resistor now and experience unmatched durability and performance for your industrial power systems.
