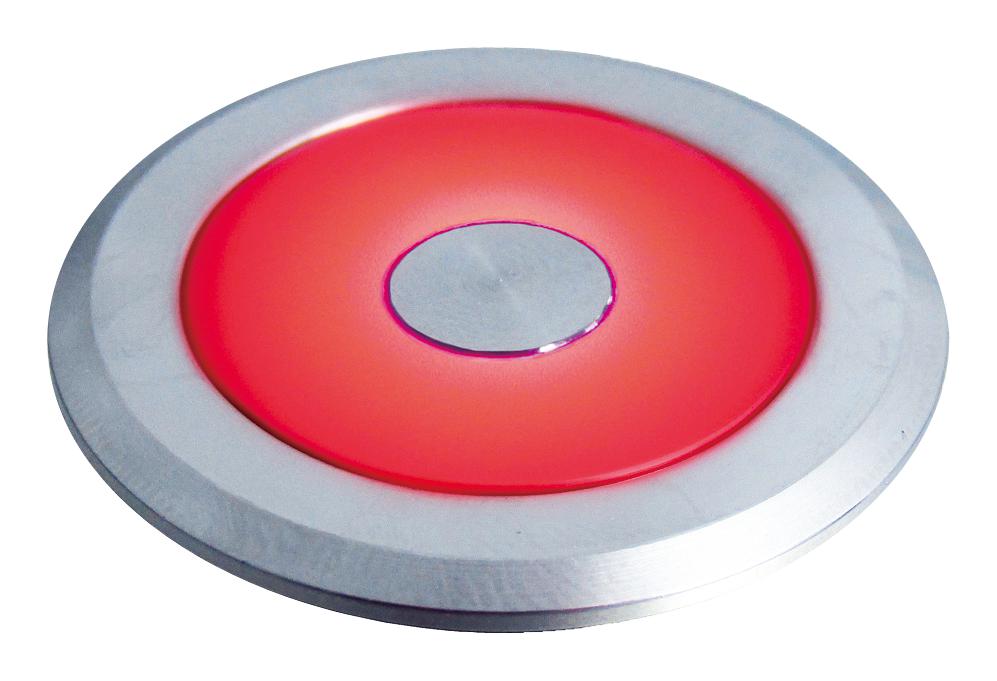

MULTICOMP PRO MC011000 Vandal-Resistant Switch
The flush illuminated vandal-resistant switch is designed for industrial environments requiring durable, water-resistant, and vandal-proof operation. It features a metal bezel-ring or silhouette-ring, LED illumination with various color options, and a rated voltage of 600V with a current capacity of 210A. The switch withstands harsh conditions with an IP65 rated protection, dielectric strength of 2000V between live parts and ground, and operates within -30°C to +80°C. Ideal for control panels and industrial automation, its robust construction ensures long-lasting, reliable switching functionality even in vandal-prone or demanding settings.
MULTICOMP PRO MC011000 Vandal-Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Premier Multicomp Pro MC011000 – Reliable Vandal-Resistant Industrial Switch
Purchase the premium vandal-resistant switch online today to ensure robust control for industrial applications. Designed with a durable aluminium body and IP65 rating, this switch withstands harsh conditions, vandalism, and high voltage demands. Its LED illumination offers clear status indication with color options including green, red, and blue. Ideal for control panels and automation systems, it provides long electrical and mechanical life, dielectric strength of 2000V, and operating temperature range from -30°C to +80°C. Secure your industrial setup with ease, backed by fast online delivery and expert support.
Get Premier Multicomp Pro MC011000 today—built for durability, vandal resistance, and reliable industrial control switching.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011000?
You can click on the BUY or RFQ button to purchase MC011000 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011000?
You can download the MC011000 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011000?
MULTICOMP PRO
