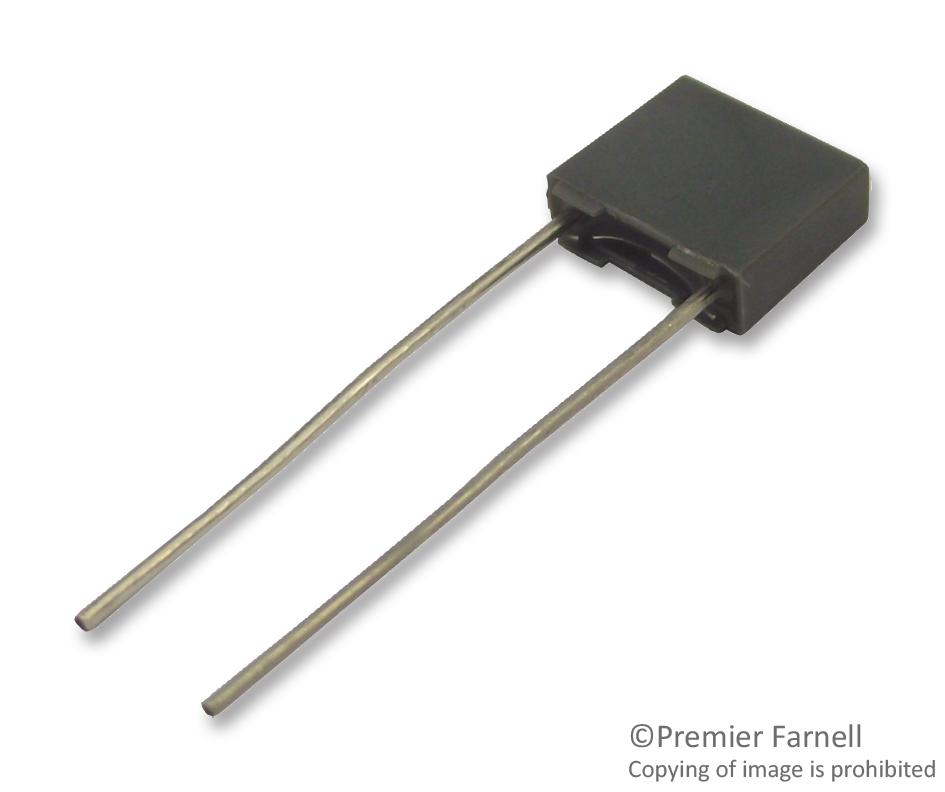

MULTICOMP PRO MCPBSFC1J104KA45 Plastic Film Capacitor
This 5mm plastic film capacitor features metallised polyester construction with flame retardant plastic cases, stand-off feet, and a standard 5mm pitch for easy installation. Designed for industrial applications, it offers a working voltage of 63V DC / 40V AC, with a temperature range from -55°C to +85°C and full operating limits up to 105°C with voltage derating. Its low dissipation factor of 2.1% at 1kHz and insulation resistance of 215,000 MΩ make it reliable for high-performance circuits. Encapsulated and compliant with safety standards, this capacitor is suitable for various electronic and industrial uses.
MULTICOMP PRO MCPBSFC1J104KA45 Plastic Film Capacitor Specifications:
- Working Voltage at 85°C: 63V DC / 40V AC
- Capacitance: 0.001uF
- Capacitance Tolerance: ±10%
- Operating Temperature Range: -55°C to +85°C
- Maximum Temperature with Voltage Derating: 105°C
- Insulation Resistance: 215,000 MΩ (25,000 seconds at 20.33 pF)
- Dissipation Factor: 2.1% at 1 kHz
- Dimensions: Max Width 7.2 mm, Max Height 6.5 mm, Max Depth 25 mm
- Case: Flame retardant plastic with stand-off feet
- Body Color: Grey
- Construction: Metallised polyester, stacked design
- Feature: Industry standard 5mm pitch
- Tolerance: ±10%
Buy the Buy Multicomp Plastic Film Capacitor Part Number MCPBSFC1J104KA45 Online
Order the Multicomp plastic film capacitor with part number MCPBSFC1J104KA45 today and experience high-quality performance for your electronic projects. This 5mm pitch, metallised polyester capacitor features flame retardant casing, reliable insulation resistance, and an excellent temperature range from -55°C to +85°C. Its compact size and industry-standard features make it suitable for industrial and electronics applications. Perfect for circuit noise suppression, filtering, and timing circuits, this capacitor offers long-lasting durability and consistent performance for all your electronic needs. Buy now for fast delivery and trusted quality.
Get Multicomp plastic film capacitor MCPBSFC1J104KA45 today—designed for high reliability, excellent dielectric properties, and durable flame retardant casing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPBSFC1J104KA45?
You can click on the BUY or RFQ button to purchase MCPBSFC1J104KA45 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPBSFC1J104KA45?
You can download the MCPBSFC1J104KA45 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPBSFC1J104KA45?
MULTICOMP PRO
