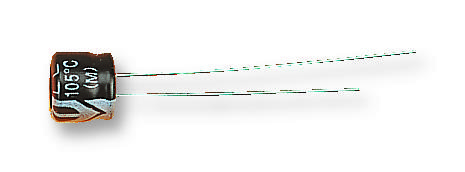

MULTICOMP PRO MCUMHR35V226M63X5 Miniature Radial Capacitor
This ultra miniature radial electrolytic capacitor series is designed for high-density electronic devices requiring small and thin components. With a body length of just 5mm, it is ideal for compact applications such as automatic office machines, pocket calculators, car stereos, mini-audio sets, VCRs, cameras, and notebooks. It features operating temperatures from -40°C to +85°C, voltage ratings from 6.3V to 50V, and capacitance values between 1uF and 100uF. The capacitors exhibit low leakage current and stable performance after extended use and high-temperature storage, making them suitable for demanding electronic environments.
MULTICOMP PRO MCUMHR35V226M63X5 Miniature Radial Capacitor Specifications:
- Operating temperature range: -40°C to +85°C
- Rated working voltage range: 6.3V DC to 50V DC
- Nominal capacitance range: 1uF to 100uF
- Capacitance tolerance: +20% at +20°C, 120Hz
- Leakage current: | = 0.01 CV or 3 (μA) after two minutes
- Maximum dissipation factor (tan δ) at working voltage: 0.24 (6.3V), 0.16 (16V), 0.12 (35V), 0.1 (50V)
- Low temperature stability: -25°C / +20°C (4, 2, 2, 2), -40°C / +20°C (8, 4, 3, 3)
- High temperature retention: After 1,000 hours at +85°C, capacitance change within +20% of initial
- Shelf life: Storage for 500 hours at +105°C with no voltage, then stability at +20°C
- Materials: Suitable for solvent proof cleaning, ultrasonic cleaning, and steam cleaning
Buy the Buy Multicomp Pro Ultra Miniature Radial Capacitors Part Number MCUMHR35V226M63X5 Online
Experience the reliable performance of the Miniature Radial Capacitor from Multicomp Pro. Perfect for compact electronic solutions, it offers excellent stability across a wide temperature range, low leakage current, and high-quality materials suitable for demanding environments and circuit board cleaning. With a small form factor, it is ideal for high-density electronics like calculators, audio sets, and cameras. Purchase this capacitor online today and ensure your electronic devices operate smoothly and efficiently for years to come.
Get Multicomp Pro MCUMHR35V226M63X5 today—designed for high-density electronic applications and long-lasting reliability.
