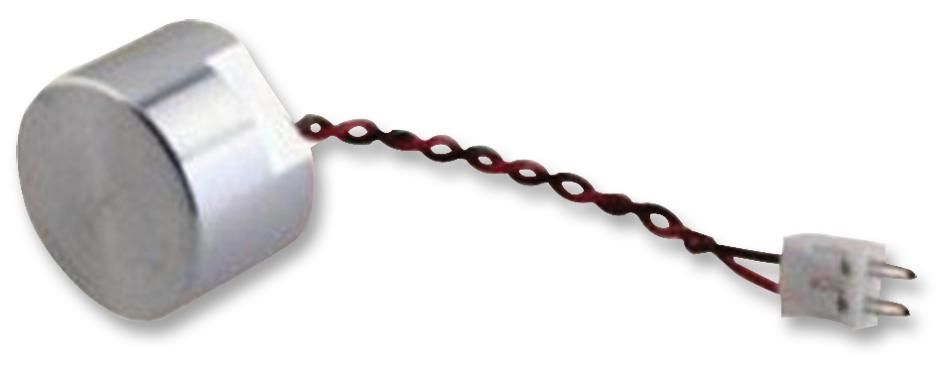

MULTICOMP PRO MCUSD14A40S09RS30C Ultrasonic Sensor
The ultrasonic ceramic transducer is waterproof and designed for automotive ultrasonic ranging and parking sensors. It features a compact, lightweight aluminum housing with an open structure, high sensitivity, and low power consumption. The device operates at a center frequency of 40 kHz, with a sound pressure level of 297 dB at 30cm/10V rms, and has a beam pattern of 110° x 50°. It supports an input voltage of up to 160V, with an operating temperature range from -40°C to 85°C, ensuring reliable performance in harsh automotive environments.
MULTICOMP PRO MCUSD14A40S09RS30C Ultrasonic Sensor Specifications:
- Waterproof construction
- Center frequency: 40 + 1 kHz
- Sound Pressure Level: 297 dB (30cm/10V rms)
- Sensitivity: >-75 dB/V/pbar
- Beam pattern: 110 x 50°
- Capacitance: 2,500 pF at 1kHz ±25%
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Allowable Input Voltage: 160V
- Housing Material: Aluminum
- Lead wires: AWG30 Red, Black, connector pitch 2mm
- NON Hexavalent Chrome anti-corrosion coating
Buy the Multicomp Series Ultrasonic Sensor: MCUSD14A40S09RS30C
Discover the high-performance waterproof ultrasonic sensor designed for automotive ultrasonic ranging and parking assistance. The MCUSD14A40S09RS30C offers high sensitivity, a 40 kHz frequency, and a compact aluminum housing for easy integration. Its rugged construction supports operation in extreme temperatures from -40°C to 85°C, with a sound pressure level of 297 dB at 30cm. Perfect for automotive and industrial applications, this sensor guarantees dependable performance, low power consumption, and long-term reliability. Order online today and upgrade your sensing solutions effortlessly.
Order your Multicomp Series ultrasonic transducer MCUSD14A40S09RS30C today and enhance your automotive ultrasonic sensing projects with reliable, waterproof performance.
