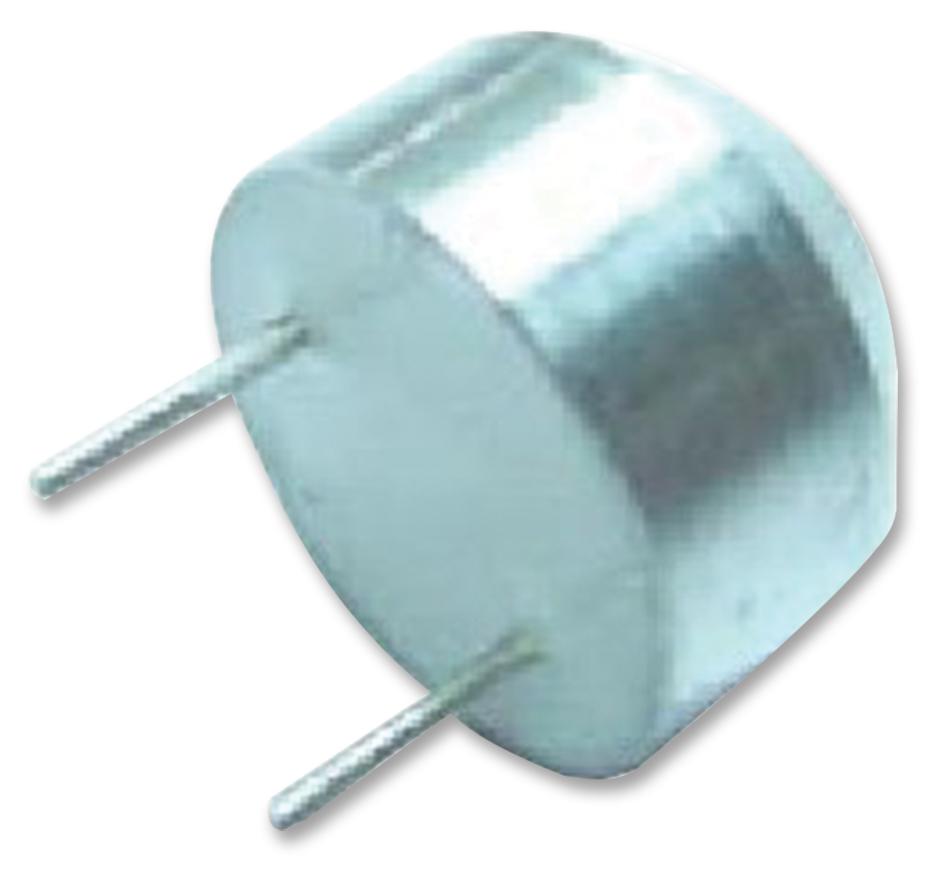

MULTICOMP PRO MCUSR18A40B12RS Ultrasonic Water Level Sensor
The ultrasonic sensor MCUSR18A40B12RS from multicomp is a waterproof, aluminium-bodied device designed for water level monitoring, automotive back sonar, and parking meters. Operating at 40kHz, it features high sensitivity, low power consumption, and an adjustable detectable range from 0.1 to 3 meters. Its robust design withstands temperatures from -40°C to +85°C, ensuring reliable performance in harsh environments. It offers an echo pulse width of up to 2360μs, 80° directivity, and excellent reliability, making it ideal for industrial and automotive applications requiring precise water level detection.
MULTICOMP PRO MCUSR18A40B12RS Ultrasonic Water Level Sensor Specifications:
- Construction: Water Proof
- Using Method: Transmitter Receiver
- Frequency: 40kHz ±1kHz
- Sound Pressure Level: min.97dB (10V/30cm)
- Sensitivity: -75dB/V/pbar (min.)
- Echo Pulse Width: 2360μs at 1.2m
- Capacitance: 2,100pF ±25% at 1kHz
- Directivity: 80°
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Allowable Input Voltage: 160Vp-p
- Detectable Range: 0.1 to 3 meters
- Housing Material: Aluminium
Buy the Multicomp MCUSR18A40B12RS – Reliable Ultrasonic Sensor for Industrial Applications
Order the multicomp MCUSR18A40B12RS ultrasonic sensor online today and benefit from its waterproof design, high sensitivity, and broad temperature range. This compact and lightweight sensor provides accurate water level measurements from 0.1 to 3 meters, making it perfect for automotive back sonar, parking meters, and water level meters. Its aluminium construction ensures durability, while the low power consumption helps in energy-efficient applications. Get reliable performance in harsh environments, with easy integration into your systems. Purchase now for quick delivery and technical support.
Buy multicomp MCUSR18A40B12RS ultrasonic sensor now and experience unmatched reliability, water resistance, and precise water level detection for industrial and automotive needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCUSR18A40B12RS?
You can click on the BUY or RFQ button to purchase MCUSR18A40B12RS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCUSR18A40B12RS?
You can download the MCUSR18A40B12RS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCUSR18A40B12RS?
MULTICOMP PRO
