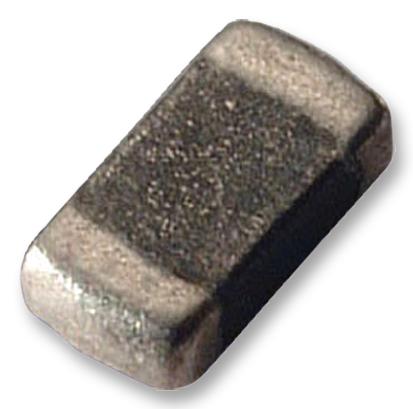

MULTICOMP PRO MCVZ0603M180AGT Multilayer Chip Varistor
The Multilayer Chip Varistor is a surface-mount surge suppression device designed to protect electronic components from transient voltage spikes and ESD events. Manufactured using multilayer fabrication technology, it offers excellent voltage clamping, stability across -55°C to +125°C, and bi-directional operation. Suitable for applications such as protection of cellular phones, high-speed data lines, and video/audio ports, it features leadless construction, nickel-tin electrodes, and dimensions of approximately 1.6mm by 0.8mm with a maximum height of 0.9mm. Its reliability has been validated through stringent high/low-temperature, humidity, and mechanical testing, ensuring robust circuit protection.
MULTICOMP PRO MCVZ0603M180AGT Multilayer Chip Varistor Specifications:
- Dimensions: Length 1.6 mm ±0.15 mm, Width 0.8 mm ±0.15 mm, Max height 0.9 mm, Terminal electrode: Ni / Sn
- Operating temperature: -55°C to +125°C
- Voltage range: 5.5V to 38V (Vm(oc))
- Maximum continuous working voltage: 5.5V at 8/20us surge, 30V at 10/1000ps surge
- Capacitance: 100 to 800 pF (reference values)
- Operating frequency: 1kHz, Capacitance at 1mA = 120 to 800 pF depending on model
- Environmental tests: high/low temperature storage, humidity, thermal cycling
- Mechanical tests: solderability, resistance to soldering heat, adhesive strength
- Electrical reliability: AV at 1mA <10% after temperature, humidity, and cycling tests
- Packaging: Paper tape, quantity 4Kpcs per reel, reel dimensions approx. 178mm x 60mm
Buy the Buy Multicomp Multilayer Chip Varistor Part Number MCVZ0603M180AGT Online
Purchase the Multicomp Multilayer Chip Varistor today for reliable transient voltage and ESD protection in electronic circuits. Its multilayer fabrication technology ensures excellent voltage clamping and stability across -55°C to +125°C. Ideal for safeguarding high-speed data lines, cellular phones, and audio/video ports, this surface-mount device features easy solderability, nickel-tin electrodes, and precise dimensions. With rigorous testing for environmental and mechanical reliability, it provides high-performance surge suppression in a compact, leadless package, suitable for modern circuit design and manufacturing needs.
Get Multicomp MCVZ0603M180AGT today—designed for durable circuit protection and high-voltage clamping in compact footprints.
