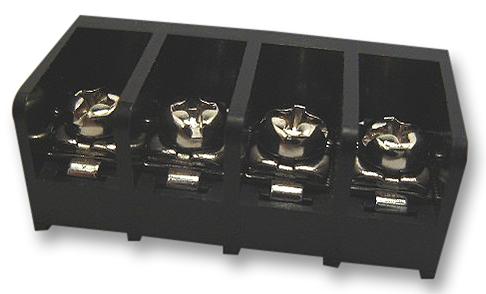

MULTICOMP PRO T40BS1604 Terminal Block
This 4-way terminal block supports a current rating of 10A and voltage of 300V AC, suitable for wiring systems requiring secure, compact connections. Made from polyamide 66 with a black insulating body, brass tin-plated contacts, and steel nickel-plated screws, it features a vertical terminal type with screw termination method. The device accommodates wire sizes from 16AWG to 30AWG, with a pitch spacing of 35mm, and operates within a temperature range of -40°C to +105°C. It is ideal for industrial wiring and panel mounting, ensuring stable electrical connections in various applications.
MULTICOMP PRO T40BS1604 Terminal Block Specifications:
- Current Rating: 10A
- Voltage Rating: 300V AC
- Min. Withstanding Insulation Voltage: 500V AC
- Insulation Resistance: 2000MW
- Operating Temperature: -40°C to +105°C
- Wire Range: 16AWG to 30AWG
- Screw Torque: 8lb-inch to 10lb-inch
- Connector Mounting: Panel
- Pitch Spacing: 35mm
- No. of Contacts: 4
- Contact Material: Brass
- Contact Plating: Tin
- Terminal Type: Screw
- Termination Method: Screw
- Wire Area Size Max: 1.3mm
Buy the Multicomp Series Terminal Block: T40BS1604
Secure your electrical connections with this reliable 4-way terminal block designed for industrial wiring. Supporting up to 10A and 300V AC, it features a robust polyamide body, brass contacts with tin plating, and screw termination for a secure fit. Suitable for wire sizes from 16AWG to 30AWG, with a compact 35mm pitch spacing, it handles temperatures from -40°C to +105°C. Ideal for panel mounting, it provides a durable, stable connection in control panels, automation systems, and wiring projects.
Order your Multicomp Series terminal block T40BS1604 today and ensure reliable, secure wiring connections for your industrial applications.
