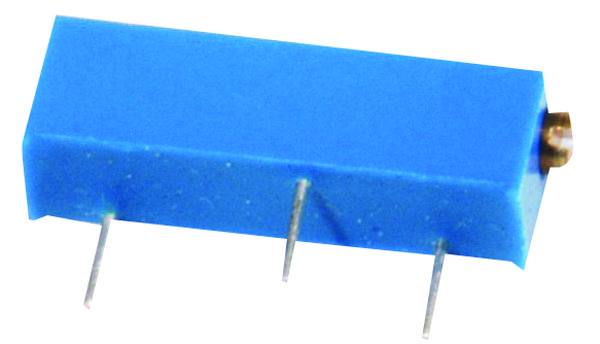

MULTICOMP PRO MCWIW10121101LF Precision Trimmer Potentiometer
The MCWIW1012-1-103-LF is a 10kΩ, 500mW, 22-turn through-hole trimmer potentiometer with infinite resolution. It features a resistance tolerance of ±10% and dielectric strengths of 101.3kPa at 600VAC and 8.5kPa at 350VAC. The component offers a 200-cycle rotational life, making it suitable for precision adjustment applications such as calibration and volume control in industrial equipment. Its sealed, cemented design ensures stability in harsh environments, and the option for extended shaft and finger adjustment enhances versatility for various electronic tuning tasks.
MULTICOMP PRO MCWIW10121101LF Precision Trimmer Potentiometer Specifications:
- Resistance: 10kΩ
- Power Rating: 0.5 Watt at 70°C, 0 Watt at 125°C
- Adjustment: 22 turns minimum
- Dielectric Strength: 101.3kPa at 600VAC, 8.5kPa at 350VAC
- Resistance Tolerance: ±10%
- Insulation Resistance: 500V DC, 1000MOQ Min.
- Temperature Range: -55°C to +125°C
- Vibration: 98m/s
- Shock: 2 390m/s
- Rotational Life: 200 cycles
- Torque: Max 15Nm
- Physical: 3/4 inches rectangular/Multiturn, sealed, with optional extended shaft
- Compliance: RoHS
- Adjustment Angle: 22 turns min
Buy the Multicomp 103-LF – Reliable Trimmer Potentiometer for Industrial Applications
Enhance your electronic tuning and calibration tasks with this high-quality 10kΩ precision trimmer potentiometer. Featuring a sealed, cemented design, 22 turns for fine adjustment, and infinite resolution, it is ideal for industrial, calibration, and control applications. The component offers a rugged structure with a maximum torque of 15N·m, resistance tolerance of ±10%, dielectric strength suitable for high-voltage environments, and operating temperature range from -55°C to +125°C. Ensure reliability and precision for your projects by ordering online today.
Order your Multicomp Series103-LF precision trimmer potentiometer today and give your projects the dependable quality they deserve for accurate tuning.
