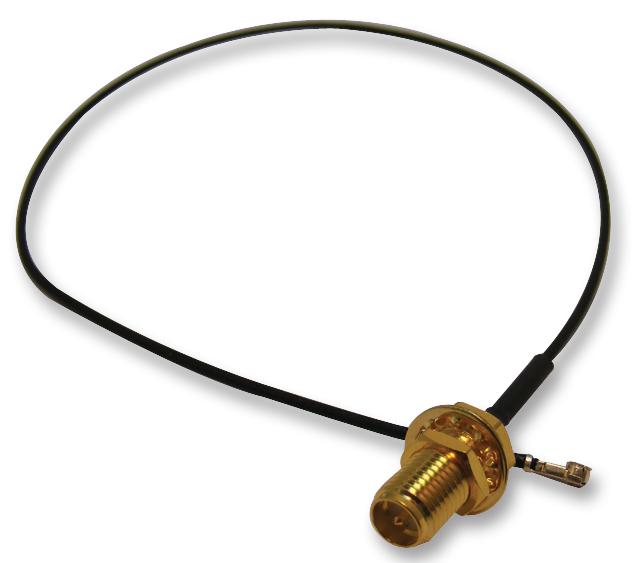

MULTICOMP PRO R132G7210100CB RF Coaxial Assembly
This RF coaxial cable assembly features a 90-degree U.FL plug and SMA bulkhead jack, designed for precise RF connections in communication systems. With a 100mm length and black heat shrink insulation, it ensures durability and reliable performance across DC to 3 GHz frequency range. Constructed with a 1.37mm low-loss cable, it offers 50-ohm impedance, can withstand voltages up to 60V RMS, and has dielectric withstanding voltage of 200V RMS. Suitable for outdoor and industrial RF applications, it maintains excellent signal integrity with low insertion loss and VSWR, operating efficiently from -20°C to +70°C.
MULTICOMP PRO R132G7210100CB RF Coaxial Assembly Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 3 GHz
- Max. Working Voltage: 60V RMS
- Dielectric Withstanding Voltage: 200V RMS
- Insulation Resistance: ≥500 MΩ
- Cable Length: 100mm (3.9 inches)
- Jacket Colour: Black
- Connector Type: 90° U.FL Plug to SMA Bulkhead Jack
- Temperature Range: -20°C to +70°C
- Insertion Loss: ≤ -1.3 dB
- VSWR: 1.4:1
Buy the Buy Multicomp Pro RF Coaxial Assembly Part Number R132G7210100CB Online
Order the Multicomp Pro RF Coaxial Assembly online today and enhance your RF communication systems with a durable, high-performance cable featuring a 90° U.FL plug and SMA bulkhead jack. This 100mm black cable provides excellent signal integrity from DC to 3 GHz, supporting outdoor and industrial applications. Built with low-loss materials, it ensures reliable operation under varying temperature conditions from -20°C to +70°C. Enjoy fast delivery and dedicated customer support, making it the ideal choice for professionals seeking quality RF components.
Buy Multicomp Pro R132G7210100CB now and experience unmatched reliability and high-frequency performance for your RF communication projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R132G7210100CB?
You can click on the BUY or RFQ button to purchase R132G7210100CB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R132G7210100CB?
You can download the R132G7210100CB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R132G7210100CB?
MULTICOMP PRO
