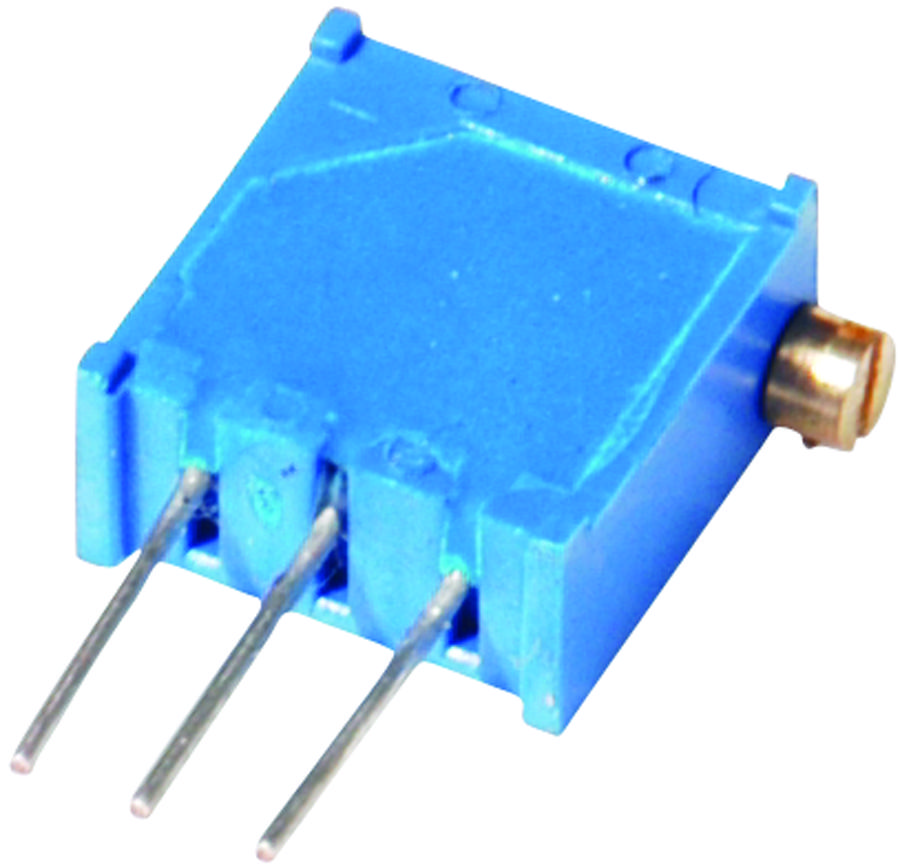

MULTICOMP PRO MCWIW1029X102LF precision trimmer
The MCWIW1029-X-102-LF is a high-quality multi-turn trimmer potentiometer suited for precise adjustment in industrial settings. Featuring a 25-turn operation, solderable pins, and a 9mm square form factor, it includes a finger-adjustable knob for easy fine-tuning. Capable of functioning over a broad temperature range from -55°C to +125°C, it boasts an insulation resistance of at least 1000 MΩ at 500VDC and a maximum torque of 36 mN·m. Its robust design and infinite resolution make it ideal for applications requiring reliable, long-term calibration and adjustment.
MULTICOMP PRO MCWIW1029X102LF precision trimmer Specifications:
- Resistance Range: 21kΩ to 1MΩ
- Resistance Tolerance: 10%
- Absolute Min Resistance: 1% or 20Ω (whichever is greater)
- Contact Resistance Variation: 3% or 30Ω (whichever is greater)
- Adjustability: Voltage 0.01%, Resistance 0.05%
- Resolution: Infinite
- Insulation Resistance: ≥1000 MΩ at 500VDC
- Dielectric Strength: 600V AC (101.3 kPa), 360V AC (8.5 kPa)
- Effective Travel: 25 turns
- Power Rating: 0.5 watt at 70°C
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: ≤100ppm/°C
- Vibration: ≤98 m/s²
- Shock: 390 m/s²
- Load Life: 1000 hours at 0.5 watt, 70°C
- Rotational Life: 200 cycles
- Mechanical Stops: Wiper Idles
- Terminals: Solderable pins
- Dimensions: 9mm x 9mm square, 0.6mm thick
- Torque: Max 36 mN·m
Buy the Multicomp 102-X-102-LF – Reliable Precision Trimmer for Industrial Applications
Shop online now for the Multicomp 102-X-102-LF multi-turn trimmer potentiometer, perfect for high-accuracy applications. This solderable potentiometer with 25 turns provides reliable, precise adjustments in industrial electronics. Its robust construction ensures durability over extensive temperature ranges from -55°C to +125°C, making it ideal for calibration, fine-tuning, and testing environments. Easy to install with solder pins and featuring a finger-adjustable knob, this compact, square form factor enhances space efficiency. Ensure your projects benefit from high insulation resistance and long-lasting performance with this trusted component.
Buy Multicomp 102-X-102-LF now and experience unmatched reliability and performance in precision electronic adjustments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWIW1029X102LF?
You can click on the BUY or RFQ button to purchase MCWIW1029X102LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWIW1029X102LF?
You can download the MCWIW1029X102LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWIW1029X102LF?
MULTICOMP PRO
