A Premier B2B Part Search

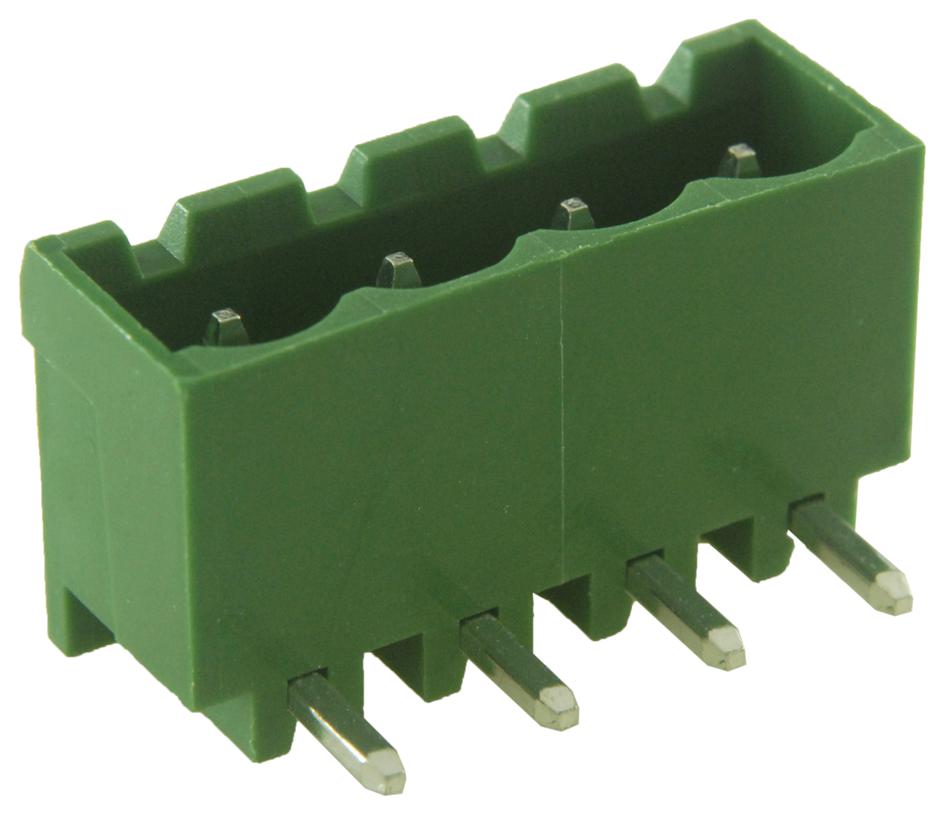

MULTICOMP PRO ME03050804 Pluggable Terminal Block
The ME030-50804 pluggable terminal block features durable tin-plated phosphor bronze contacts and a polyamide 66 insulating body and cover for long-lasting reliability. Compatible with 24 to 14 AWG wires, it withstands temperatures from -40°C to 105°C and offers an insulation resistance exceeding 2000 megaohms at 200V DC. Rated for 16 amps and operating at AC300V, this industrial-grade component ensures secure electrical connections in automation, control systems, and industrial equipment. Its compact design and roHS compliance make it ideal for modern manufacturing environments.
MULTICOMP PRO ME03050804 Pluggable Terminal Block Specifications:
- Rated Current: 16 Amp
- Voltage Rating: AC300V
- Insulation Resistance: >2000 Megaohms at 200V DC
- Operation Temperature: -40°C to +105°C
- Wire Range: 24 AWG to 14 AWG
- Material: Polyamide 66 (UL94V-0)
- Contact Material: Phosphor bronze, tin plated
- Insulation Withstands Voltage: AC2000V minimum
- Wire Strip Length: 10mm
- Dimensions: compatible with 5.08mm pitch, various poles available
- RoHS Compliant
Buy the Buy multicomp Pluggable Terminal Block Part Number ME030-50804 Online
Enhance your electrical assemblies with the multicomp pluggable terminal block. Featuring robust phosphor bronze contacts and a polyamide insulator, it supports wire sizes from 24 to 14 AWG and offers superior insulation resistance over 2000 megaohms. Operating reliably from -40°C to 105°C, rated at 16 amps, and with a voltage capacity of AC300V, this component is perfect for industrial automation, control panels, and wiring systems. Purchase online today for fast delivery and trusted quality.
Get multicomp ME030-50804 today—designed for secure, reliable connections with robust contacts and high temperature tolerance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ME03050804?
You can click on the BUY or RFQ button to purchase ME03050804 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ME03050804?
You can download the ME03050804 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ME03050804?
MULTICOMP PRO
