MULTICOMP PRO MP000805 Micro Switch
This is a through-hole snap action microswitch designed for precise switching in electronic devices. It features a hinge lever, 0.5A, 30V DC ratings, and various terminal configurations including SPDT, SPST-NC, and SPST-NO. The microswitch exhibits a mechanical durability of 100,000 cycles and an electrical durability of 50,000 cycles. Operating temperature ranges from -40°C to +85°C. It is suitable for mapping devices, small audio equipment, office automation, and portable electronics, offering reliable operation with high insulation resistance and dielectric strength.
MULTICOMP PRO MP000805 Micro Switch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MO min (at 500V DC)
- Dielectric Strength: 250V AC across terminals for 1 minute
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max
- Release Force: 0.03N Min
- Over Travel: 0.3mm Min
- Movement Differential: 0.7mm Max
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max
- Pretravel: 1.8mm Max
- Terminal Type: Uneven Pitch

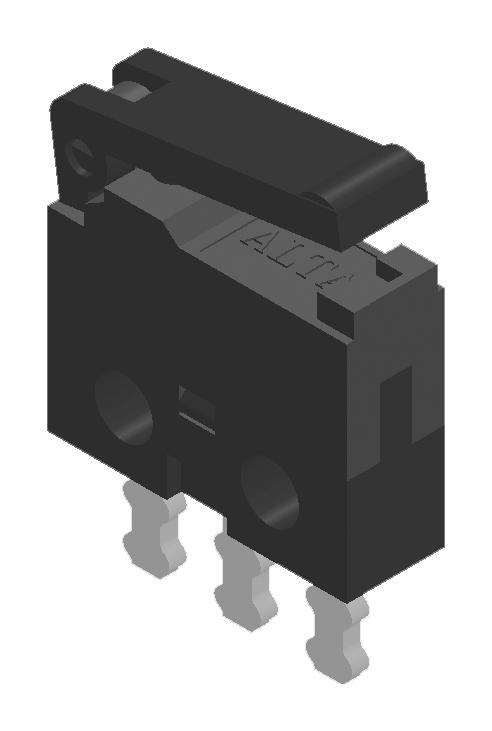

Buy the Buy MultiComp Microswitch Part Number MP000805 Online
Order the reliable micro switch designed for demanding electronic projects from online stores. It features a hinge lever, 0.5A, 30V DC ratings, and various terminal configurations. Ideal for mapping devices, audio gear, office automation, and portable electronics, ensuring consistent operation. The switch provides high insulation resistance, dielectric strength, and durability, supporting up to 100,000 mechanical cycles and 50,000 electrical cycles. Shop now to secure a high-quality component for your electronic applications with fast, easy online purchasing.
Get MultiComp MP000805 today—built for precision and long-lasting durability in electronic switching applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000805?
You can click on the BUY or RFQ button to purchase MP000805 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000805?
You can download the MP000805 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000805?
MULTICOMP PRO
