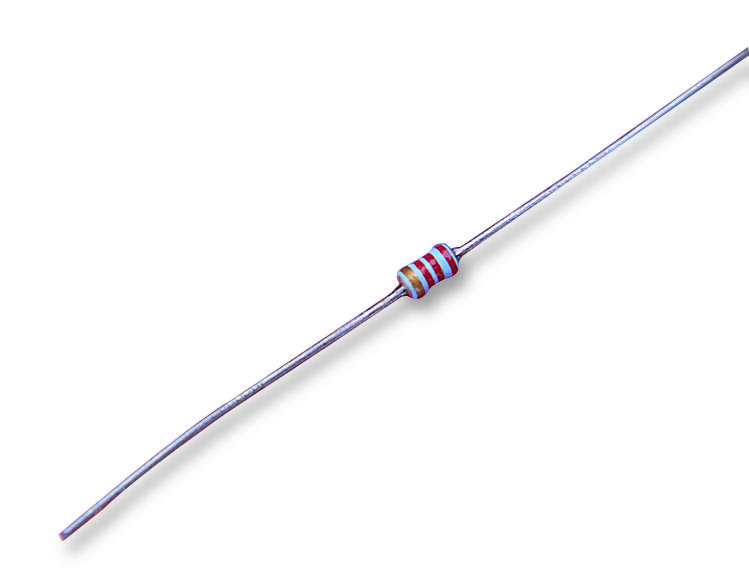

MULTICOMP PRO MF0W4FFE024KIL Metal Film Resistor Kit
The MF0W4FFE024KIL is a comprehensive kit of axial leaded, precision metal film fixed resistors. It includes resistors with E24 decade values ranging from 10 ohms to 1 megaohm. Each resistor has a power rating of 0.25W and a tolerance of ±1%. The kit offers 121 different resistance values, with 100 pieces available for each value. Suitable for industrial, power management, consumer electronics, and portable device applications, it contains 12,100 resistors in total. It is rated highly for quality and reliability, making it ideal for various electrical projects.
MULTICOMP PRO MF0W4FFE024KIL Metal Film Resistor Kit Specifications:
- Power Rating: 0.25W at 70°C
- Max. Working Voltage: 250V
- Max. Overload Voltage: 500V
- Dielectric Withstanding Voltage: 500V
- Resistance Tolerance: ±1%
- Resistance Range: 10Ω to 1MΩ
- Resistance Values: E24 series
- Temperature Coefficient: +50 PPM/°C Max
- Temperature Range: -55°C to +155°C
- Insulation Resistance: 10,000 MΩ Min.
- Terminal Strength: Resistance to mechanical damage, load, and twist tests
- Solderability: 95% coverage min. at 245°C for 2-3 seconds
- Resistance to Soldering Heat: Resistance change rate: ±1% at 350°C for 3 seconds
- Resistance to Vibration and Humidity: Meets standards after testing
- Dimensions: Length 6.8mm, Diameter 2.5mm, Max. Height 28mm
Buy the Buy multicomp Metal Film Resistor Kit Part Number MF0W4FFE024KIL Online
Enhance your electronic assemblies with the multicomp Metal Film Resistor Kit featuring 121 resistance values from 10Ω to 1MΩ, perfect for industrial, power management, and consumer electronics applications. Each resistor offers 0.25W power handling and ±1% tolerance, ensuring precise performance across a wide temperature range from -55°C to +155°C. Packaged with 12,100 high-quality resistors, this kit guarantees durability, reliability, and excellent electrical characteristics. Ideal for professionals and hobbyists seeking dependable components for various electronic projects.
Order your multicomp Metal Film Resistor Kit MF0W4FFE024KIL today and secure reliable precision resistors for your electronic projects.
