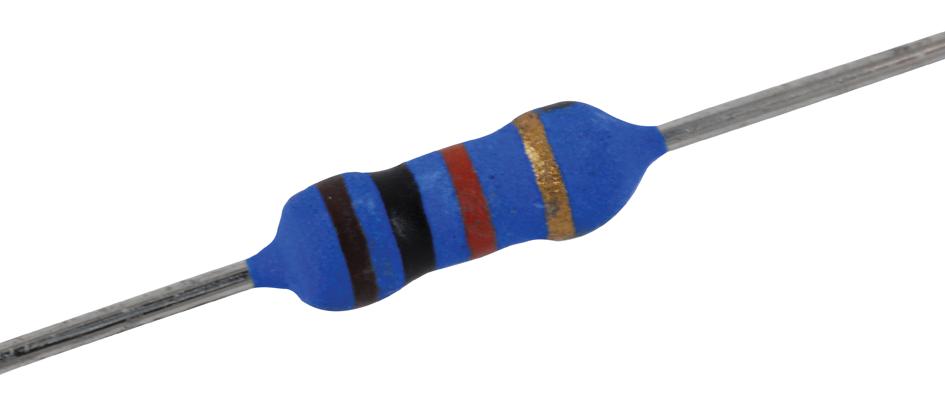

MULTICOMP PRO MGRF1WJ0125A10 High Voltage Resistor
The MGRF series from Multicomp Pro features high-stability metal glaze film resistors ideal for demanding environments. These compact resistors, approximately 6mm by 17mm by 28mm, offer resistance from 1 kΩ to 33 MΩ with a ±5% tolerance. Rated for 2W at 70°C, they withstand max voltages of 3500V and overloads up to 4000V. With dielectric withstand voltage of 1000V and surge voltages up to 10,000V, they suit high-voltage circuits requiring consistent performance and surge absorption under varied conditions.
MULTICOMP PRO MGRF1WJ0125A10 High Voltage Resistor Specifications:
- Resistance Range: 1 kΩ to 33 MΩ
- Power Rating: 2W at 70°C
- Dimensions: Approximately 6mm x 17mm x 28mm
- Maximum Working Voltage: 3500V
- Overload Voltage: 4000V
- Dielectric Withstanding Voltage: 1000V
- Surge Withstanding Voltage: Up to 10,000V
- Tolerance: ±5%
- Temperature Coefficient: Not specified
- Material: Metal glaze film
- Inspection & Testing: Resistance to surge voltage, dielectric withstand, stability under environmental conditions
Buy the Multicomp Series High Voltage Resistor: MGRF1WJ0125A10
Discover the reliable performance of the Multicomp high voltage resistor MGRF1WJ0125A10. Perfect for demanding electrical applications, this resistor offers high surge absorption, excellent environmental stability, and precise resistance values from 1 kΩ to 33 MΩ. Rated at 2W output at 70°C, it withstands voltages up to 3500V during normal operation and overloads up to 4000V. Its durable construction and surge resistance make it an essential component for high-voltage and industrial electronics, available now for easy online purchase to enhance your project reliability.
Buy Multicomp metallic glaze film resistor MGRF1WJ0125A10 now and ensure reliable high-voltage performance with exceptional stability and surge absorption capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MGRF1WJ0125A10?
You can click on the BUY or RFQ button to purchase MGRF1WJ0125A10 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MGRF1WJ0125A10?
You can download the MGRF1WJ0125A10 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MGRF1WJ0125A10?
MULTICOMP PRO
