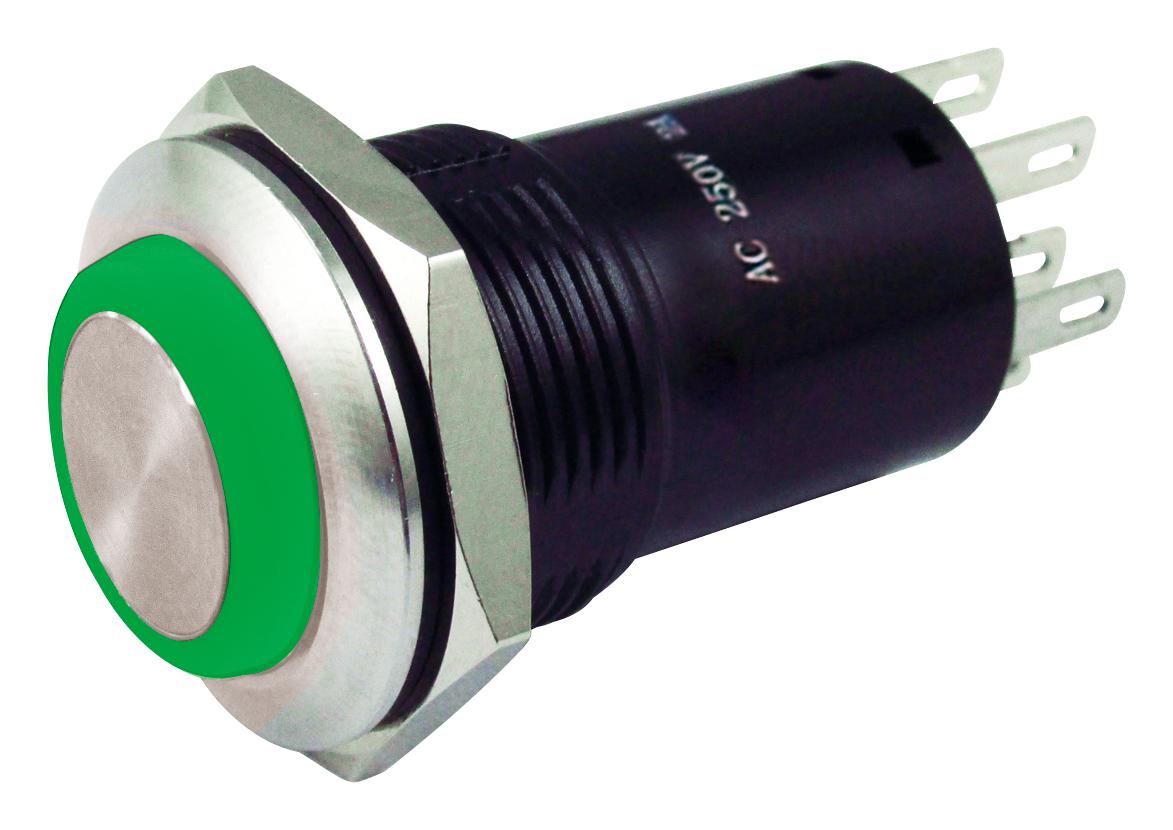

MULTICOMP PRO MC010942 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for industrial and security applications. It features a robust stainless steel body, multiple contact configurations, and LED illumination in blue, green, or red. The switch is rated for 250V and 5A, with high dielectric strength and resistance to vibration and shock. It is suitable for panel mounting with a 19mm hole diameter, offering IP65 protection and durable solder terminals. Ideal for environments requiring vandal-proof and high-visibility controls, this switch ensures reliable long-term operation in harsh conditions.
MULTICOMP PRO MC010942 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue, Green, Red
- Switch Operation: Maintained or Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, etc.
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial), 100mΩ Min. (500V DC)
- Insulation Resistance: 50,000 MΩ
- Operating Humidity: 45-85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: Damage limits 500m/S², Operating limits 200m/S²
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminals
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Terminal Width: 3x0.5mm
- Gasket: Included
- Hex Nut: Included
Buy the Multicomp Series Vandal Resistant Switch MC010942
Order the high-quality vandal resistant switch online today to enhance your industrial or security systems. Designed with stainless steel for durability, it features several contact configurations and LED illumination options in blue, green, and red. Rated at 250V, 5A, with IP65 protection, it offers quick and reliable panel mounting for harsh environments. Ideal for security panels, industrial machinery, or public access points, this switch guarantees longevity, resistance to vandalism, and ease of installation for your critical applications.
Get Multicomp Series Vandal Resistant Switch MC010942 today—built for durability with high IP65 protection, ideal for vandal-proof industrial controls.
