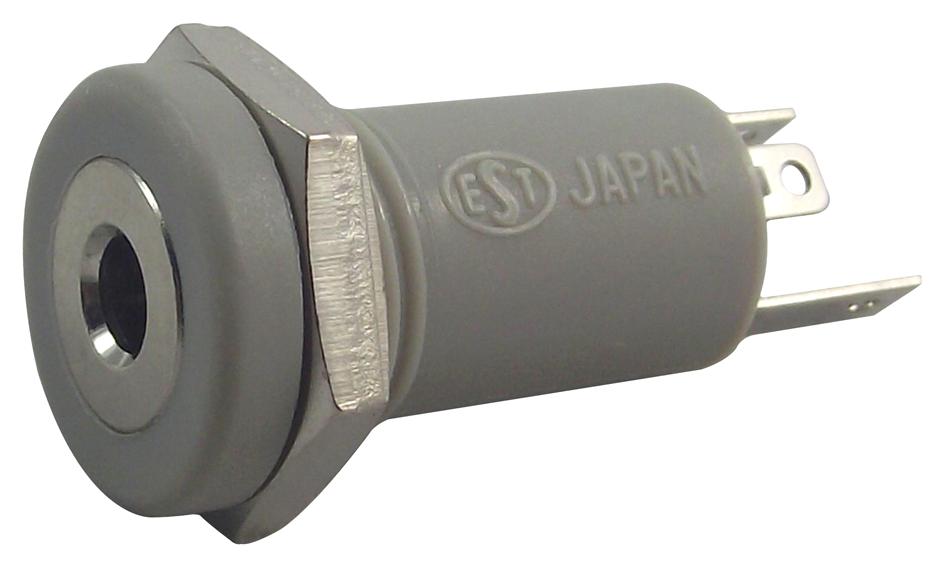

MULTICOMP PRO MJ068H 4-pin 2.5mm RCA socket
The MJ-068H is a 4-pin 2.5mm RCA (Phono) socket with gold-plated contacts and a sturdy PA housing. Designed for panel mounting, it features a metal body with solder termination, a BSBM sleeve, and a nut for secure installation. This high-quality connector is suitable for audio applications, providing reliable connectivity with a maximum contact resistance of 50 milliohms and a minimum insulation resistance of 100 megaohms at 500V DC. Its robust construction ensures durability and consistent performance in professional audio and electronic systems.
MULTICOMP PRO MJ068H 4-pin 2.5mm RCA socket Specifications:
- Number of Contacts: 4
- Gender: Receptacle
- Contact Termination: Solder
- Contact Plating: Gold
- Pin Size: 2.5mm
- Connector Colour: Grey
- Connector Mounting: Panel
- Connector Body Material: Metal
- Dielectric Strength: 500V AC for one minute
- Max. Contact Resistance: 50mΩ
- Min. Insulation Resistance: 100MΩ at 500V DC
- Connector Type: RCA/Phono
- Body Material: PA
- Sleeve Material: BSBM, Ni
- Contacts Material: FAB-EH Au, BSR Ni
- Nut Material: BSBM
Buy the Multicomp Series 2.5mm RCA Socket: MJ068H
Purchase the MJ-068H 4-pin 2.5mm RCA socket online today for hassle-free installation and dependable audio connectivity. Designed with gold-plated contacts and a sturdy metal body, it ensures optimal electrical performance and long-lasting durability in professional audio and electronic systems. Its panel mount design with solder termination provides a secure fit, making it ideal for achieving high-quality sound transmission. Order now and benefit from fast shipping, trusted quality, and compatibility with a wide range of audio applications.
Get Multicomp MJ068H today—built for reliable audio connections and durable performance in professional electronics.
