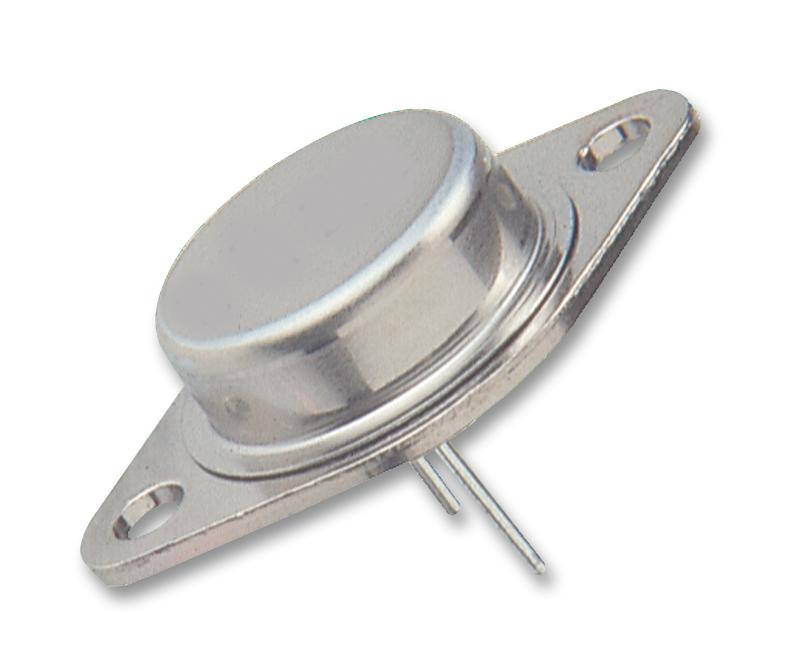

MULTICOMP PRO MJ11033 Power Transistor
The MJ11033 is a -120V silicon PNP complement of Darlington power transistors designed for use as output devices in complementary general-purpose amplifier applications. It features high DC current gain, monolithic construction with built-in base-emitter shunt resistors, and high-gain Darlington performance. Suitable for industrial and power management applications.
MULTICOMP PRO MJ11033 Power Transistor Specifications:
- Collector - Emitter Voltage: 420 V
- Collector - Base Voltage: 120 V
- Emitter - Base Voltage: 5 V
- Collector Current - Continuous: 50 A
- Peak Collector Current: 100 A
- Base Current: 2 A
- Total Power Dissipation: 300 W at 25°C
- Derate above 25°C: 1.74 W/°C
- Operating and Storage Junction Temperature Range: -65°C to +200°C
- Thermal Resistance Junction to Case: 0.584°C/W
- DC Current Gain: 1,000 (minimum at 25A), 400 (minimum at 50A)
- Collector - Emitter Saturation Voltage: 1.38 V at 25A
- Base - Emitter Saturation Voltage: 3 V at 25A
- Maximum Collector - Emitter Voltage (Vceo): 420 V
- Maximum Collector Current (Ic): 50 A continuous
Buy the Darlington Power Transistors Series MJ11033: 120V 50A PNP Power Device
Enhance your power amplifier and industrial control systems with the high-performance Darlington Power Transistor Series MJ11033. Designed for demanding applications, it delivers 50A continuous current, 420V collector-emitter voltage, and 300W power dissipation. Its high DC current gain ensures excellent amplification, making it ideal for power management and general purpose amplifiers. Built with a durable monolithic structure and efficient thermal characteristics, this PNP device guarantees reliable performance and long-term stability. Purchase online now to upgrade your electronic systems effortlessly and achieve optimal power handling.
Order your Darlington Power Transistor Series MJ11033 today and equip your industrial and power amplifier projects with reliable, high-gain performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MJ11033?
You can click on the BUY or RFQ button to purchase MJ11033 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ11033?
You can download the MJ11033 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MJ11033?
MULTICOMP PRO
