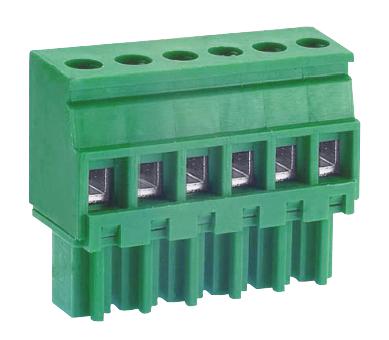

MULTICOMP PRO MC000110 Right Angle Header
The 3.81mm Pluggable Right Angle Header from multicomp:ro is designed for reliable electrical connections in compact electronic circuits. Featuring a green polyamide 66 insulating body, tarnished phosphor bronze contacts, brass cage clamps, and steel screws, this connector supports current ratings up to 10 Amperes and withstands voltages up to 300V AC. Its operating temperature ranges from -40°C to +105°C, with a wire strip length of 6.5mm suitable for 16 to 24 AWG wires. This durable, RoHS-compliant connector is ideal for PCB applications requiring secure, space-efficient connections.
MULTICOMP PRO MC000110 Right Angle Header Specifications:
- Pitch: 3.81mm (0.15 inch)
- Current Rating: 10 Amperes
- Voltage Rating: 300V AC
- Insulation Resistance: >2,000MQ at 500V DC
- Min. Insulation Withstand Voltage: 2,000V AC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 6.5mm
- Wire Range: 16 AWG to 24 AWG
- Screw Torque: 3 lb-inch
- Insulating Body Material: Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin Plated
- Cage Clamp Material: Brass, Ni Plated
- Screw Material: Steel
Buy the Multicomp Series 3.81mm Right Angle Header: MC000110
Order the multicomp right angle header MC000110 online today for dependable PCB connections. Designed with a 3.81mm pitch and rated at 10A, this connector supports wires from 16 to 24 gauge. Its durable polyamide body ensures temperature resistance from -40°C to +105°C, while the sturdy phosphor bronze contacts offer excellent conductivity. Perfect for compact electronic projects, this RoHS-compliant connector is easy to install with a 6.5mm wire strip length and 3 lb-inch screw torque for secure fastening.
Get multicomp MC000110 today—built for secure, space-saving PCB connections in electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000110?
You can click on the BUY or RFQ button to purchase MC000110 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000110?
You can download the MC000110 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000110?
MULTICOMP PRO
