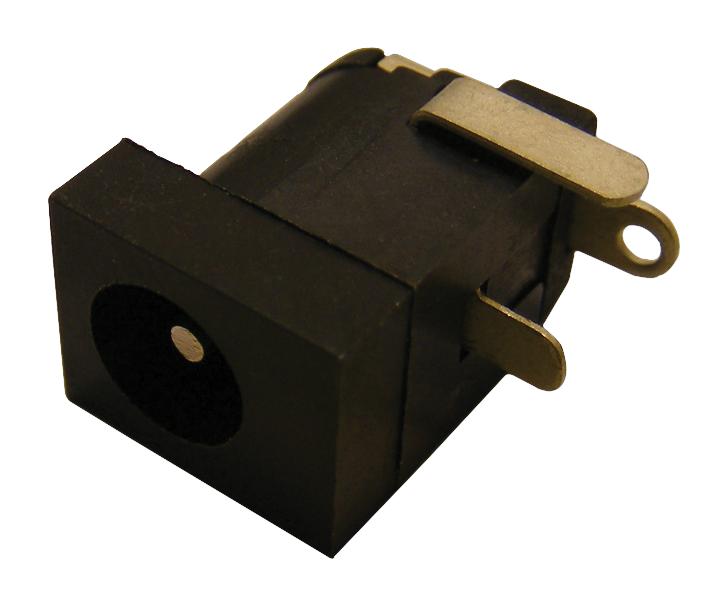

MULTICOMP-PRO MJ179PH Power Socket
The MJ-179PH from Multicomp Pro is a durable right-angled PCB mounting power socket designed for low voltage DC applications. Constructed with a nickel-plated brass center pin and PBT body, it supports 4A at 12VDC on power contacts and 2A at 12VDC on signal contacts. Featuring a contact resistance of 30 milliohm, insulation resistance of at least 100 megaohms at 500VDC, and a withstand voltage of 500VAC for one minute, this socket is ideal for industrial, power management, and portable devices requiring reliable electrical connections in compact designs.
MULTICOMP-PRO MJ179PH Power Socket Specifications:
- Current Rating: 4A at 12VDC for power contacts, 2A at 12VDC for signal contacts
- Contact Resistance: 30 milliohm
- Insulation Resistance: 100 megaohms at 500VDC
- Withstand Voltage: 500VAC for 1 minute
- Material: Nickel-plated brass center pin, PBT body
- Dimensions: Length approximately 14.5mm, width 9mm, other dimensions as per diagram
- Environment: RoHS compliant
- Design: Right-angled, single-pole, PCB mount
- Rated Voltage: 12VDC
Buy the Buy Multicomp Pro PCB Socket Part Number MJ179PH Online
Order the Multicomp Pro MJ179PH PCB power socket online today for secure and reliable 12VDC connections. Featuring a robust nickel-plated brass pin and PBT body, this socket supports 4A current with high insulation resistance and voltage withstand capability, perfect for industrial, power management, and portable device applications. Its compact design makes it suitable for various tight-space electronic assemblies. Easy to install on PCB, this socket guarantees durability, safety, and consistent performance. Purchase now for efficient power and signal management in your projects ensuring a seamless connection every time.
Get Multicomp Pro MJ179PH today—built for reliable low-voltage power connections and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MJ179PH?
You can click on the BUY or RFQ button to purchase MJ179PH from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ179PH?
You can download the MJ179PH datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MJ179PH?
MULTICOMP-PRO
