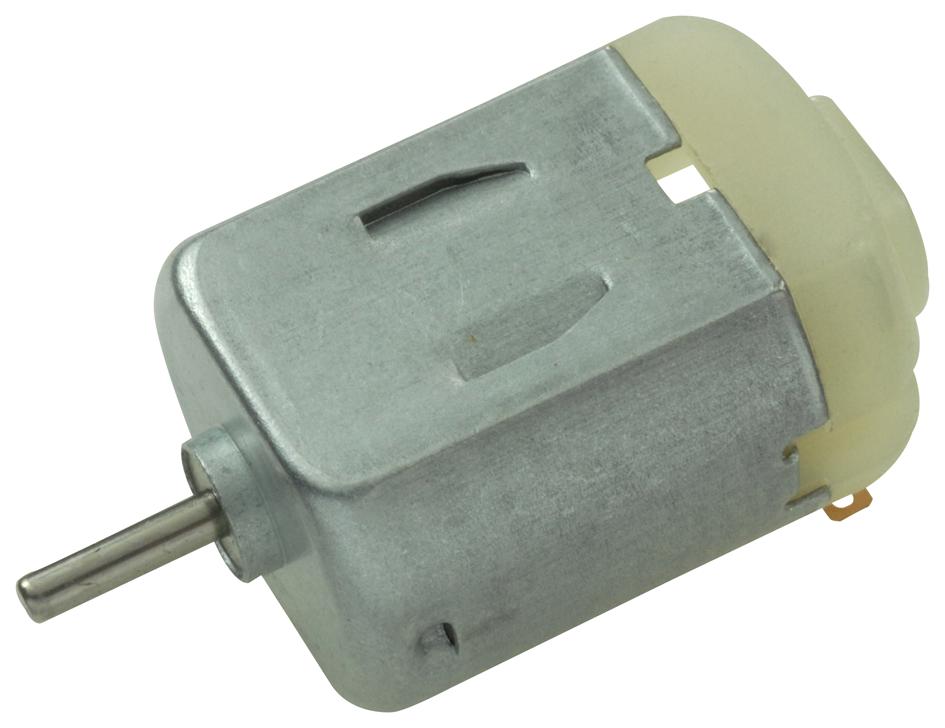

MULTICOMP PRO MM10 Miniature Permanent Magnet DC Motor
This miniature circular DC motor is ideal for models and educational projects, featuring easy panel or PCB mounting with two flat sides. Operating at 3VDC with a maximum rated current of 1.5A, it provides a no-load speed of 16,000 rpm and rated speed of 12,400 rpm. The motor delivers 210 g-cm torque, outputs 1.23W power, and produces noise levels below 68dB at 30cm distance. Designed for reliable performance, it is suitable for various hobbyist and precise mechanical applications, ensuring durability and efficiency in compact spaces.
MULTICOMP PRO MM10 Miniature Permanent Magnet DC Motor Specifications:
- Rated Voltage: 3VDC
- Direction of Rotation: CWW
- No Load Current: 0.4A Max.
- No Load Speed: 16000 +10% rpm
- Rated Load: 11.9 g.cm
- Rated Current: 1.5A Max.
- Rated Speed: 12400 +8% rpm
- Noise: <68dB at 30cm
- Torque: 210 g-cm
- Output Watts: 1.23W
- End Play: 0.05mm to 0.45mm
- Runout of Shaft Extension: 0.02mm Max.
- Dimensions: 4.0 mm diameter
- Operating Conditions: Suitable for various mechanical and hobbyist applications
- Mounting: Flat sides for easy attachment to panels or PCBs
Buy the Multicomp Series MM10 Miniature DC Motor: 3VDC
Purchase the Multicomp MM10 miniature circular DC motor online today to enhance your project. Designed for simplicity and efficiency, this 3VDC motor features high rotational speeds, reliable torque output, and low noise operation. Its compact size and flat mounting surfaces make it ideal for models, educational applications, and hobbyist projects. Backed by a 12-month warranty, it ensures dependable performance. Order now to get quick shipping and bring your mechanical projects to life with a high-quality, durable motor that delivers excellent results in limited spaces.
Buy Multicomp MM10 miniature circular DC motor now and experience unmatched reliability and performance for your models and educational projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MM10?
You can click on the BUY or RFQ button to purchase MM10 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MM10?
You can download the MM10 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MM10?
MULTICOMP PRO
