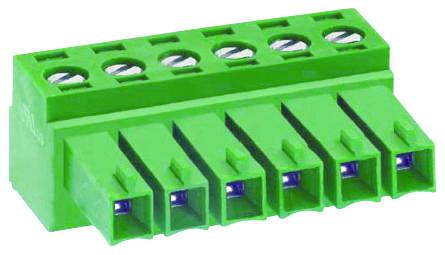

MULTICOMP-PRO MCTC42A03 Pluggable Terminal Block
This pluggable terminal block features a 3.5mm pitch and is designed for reliable electrical connections in industrial and electronic applications. Made with high-grade materials, it includes a polyamide 66 housing for durability, brass Ni-plated cage clamps, and phosphor bronze contacts that are tin-plated for corrosion resistance. It supports voltage ratings up to AC 300V and current ratings of 210A, accommodating wire sizes from 26 AWG to 16 AWG. Operating efficiently from -40°C to +105°C, it ensures secure and maintenance-free connections for various wiring needs.
MULTICOMP-PRO MCTC42A03 Pluggable Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 210A
- Wire Size: 26 AWG to 16 AWG
- Housing Material: Polyamide 66
- Cage Clamp: Brass, Ni Plated
- Contact: Phosphor bronze, Tin Plated
- Screw Size: M2, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Torque: 23 Ib-inch
- Dimensions: 15.6 A+05mm (0.614 inches), Other dimensions vary by pin count
Buy the Multicomp Series 3.5mm Pitch Pluggable Terminal Block: MCTC42A03
Order the Multicomp Pro Pluggable Terminal Block online today for secure, high-current electrical connections. With a 3.5mm pitch, durable materials like polyamide 66 housing, and nickel-plated brass cage clamps, it provides reliable performance in industrial environments. Supporting wire sizes from 26 to 16 AWG and rated at AC 300V and 210A, this terminal block operates efficiently from -40°C to +105°C. Easy to install, it ensures stable, maintenance-free electrical connections for your projects.
Get Multicomp Pro pluggable terminal block today—built for reliable connections and long-lasting durability in industrial wiring.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTC42A03?
You can click on the BUY or RFQ button to purchase MCTC42A03 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC42A03?
You can download the MCTC42A03 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTC42A03?
MULTICOMP-PRO
