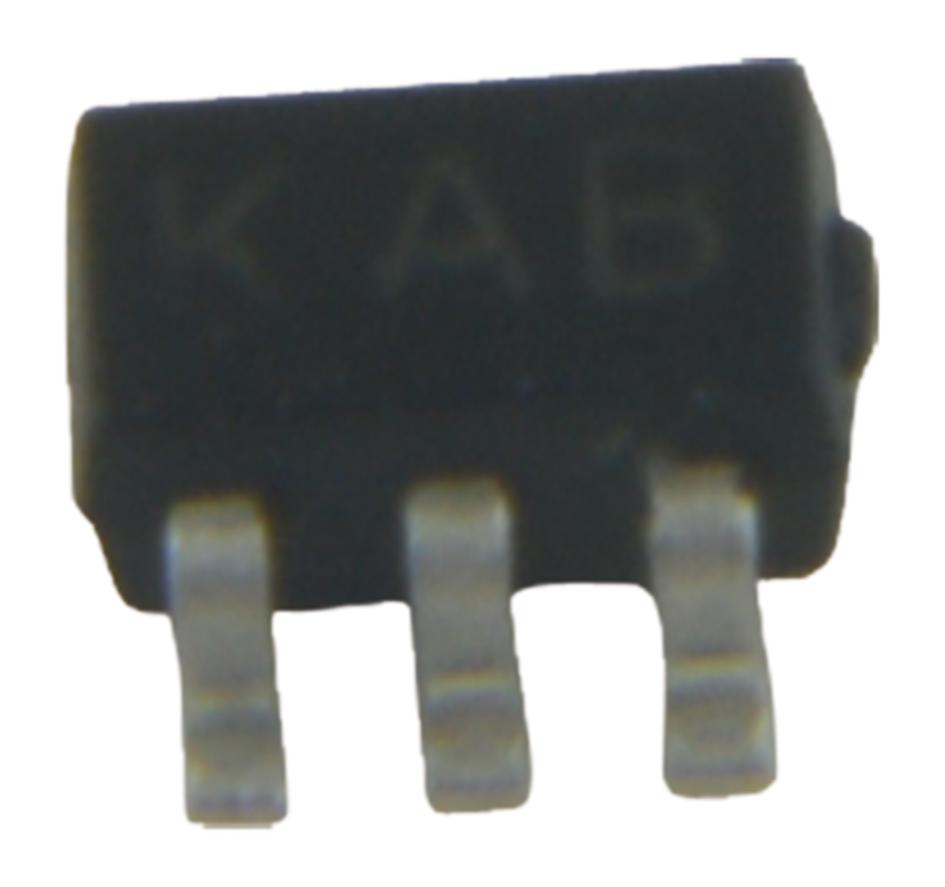

MULTICOMP PRO MMBD4448HSDW7F Fast Switching Diode
The MMBD4448HSDW-7-F is an ultra-small surface-mount fast switching diode designed for general-purpose and high-speed switching applications. It features fast switching speed, high conductance, and operates within a temperature range of -65°C to 150°C. Suitable for industrial use, this diode offers reliable performance in various electronic circuits.
MULTICOMP PRO MMBD4448HSDW7F Fast Switching Diode Specifications:
- Maximum repetitive peak reverse voltage: 80 V
- Maximum non-repetitive peak reverse voltage: 100 V
- Working peak reverse voltage: 80 V
- DC reverse voltage: 57 V
- Peak repetitive peak reverse voltage: 80 V
- Forward continuous current: 500 mA
- Average rectified output current: 250 mA
- Forward surge current @ t= tps: 4 A
- Power dissipation: 200 mW
- Thermal resistance junction to ambient air: 625 °C/W
- Operating and storage temperature range: -65°C to +150°C
- Reverse breakdown voltage (VR(BR)): 80 V
- Reverse current IR at VR=25V, Tj=150°C: 30 μA
- Forward voltage at IF=100mA: 1 V
- Total capacitance: 2 pF at Vr=6V, 1MHz
- Reverse recovery time: 4 ns
- Package: SOT-363, dimensions: A=1.8-2.2mm, B=1.15-1.35mm, G=0.65mm typical
Buy the multicomp MMBD4448HSDW-7-F – Reliable Fast Switching Diode for Industrial Applications
Purchase the multicomp MMBD4448HSDW-7-F online today and benefit from its high-speed switching capabilities, compact surface-mount design, and wide temperature operation. Perfect for industrial electronics, this diode ensures fast response times, high conductance, and reliable performance in various applications. Its ultra-small package simplifies assembly and saves space while providing excellent electrical characteristics. Get yours now to enhance your electronic device performance with a trusted, high-quality surface-mount diode designed for demanding industrial environments.
Buy multicomp MMBD4448HSDW-7-F now and experience unmatched reliability and high-speed switching performance in your electronic circuits.
