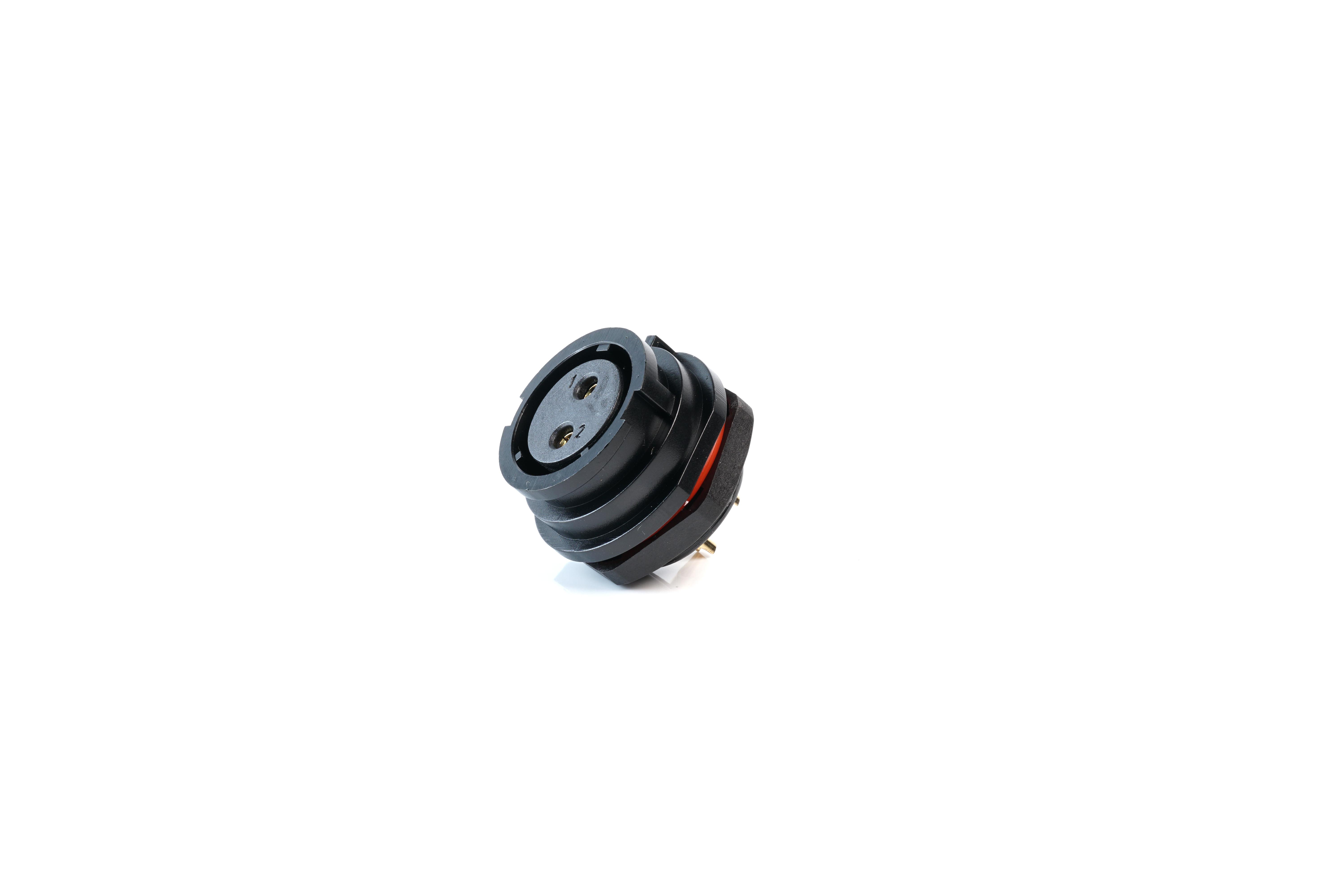

MULTICOMP PRO MP002719 Circular Connector
The MP-T21 IP67 series is a durable range of connectors featuring bayonet couplings for quick and secure connection and disconnection. Available in panel mount, cable mount, and in-line configurations, these connectors facilitate cable-to-panel or cable-to-cable connections. Designed with weather sealing rated at IP67, they are suitable for both indoor and outdoor environments. The connectors fit a 21mm cut-out and offer solder and screw termination options. They come in versions with 2, 3, 4, 5, 7, 9, and 12 poles, and an IP67-rated cap is also available. These connectors are ideal for applications such as automation and process control, medical equipment, security systems, test and measurement, and industrial automation.
MULTICOMP PRO MP002719 Circular Connector Specifications:
- Ingress Protection Rating: IP67
- Material: Nylon66 shell and insert, brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Maximum Temperature of Insert Material: 260°C
- Coupling Type: Bayonet
- Termination: Solder or Screw
- Contact Diameter: 1 to 3 mm
- Number of Contacts: 2 to 12 poles
- Rated Current: 5 to 30 A depending on contact
- Rated Voltage: 400 to 500 V
- Test Voltage (AC, 1 min): 1200 to 1500 V
- Contact Resistance: 1 to 5 mΩ
- Mating Cycle: 500
- Dimensions: Fits 21mm panel cutout, cable diameter up to 12mm
- RoHS Compliant
- Overall durability for outdoor and industrial use
Buy the Buy multicomp IP67 Connector Part Number MP002719 Online
Order the multicomp IP67 Circular Connector MP002719 online today for reliable, weatherproof connectivity in tough environments. These connectors feature bayonet couplings for quick and secure connections, suitable for electrical enclosures, automation, and outdoor applications. They are easy to install with solder or screw termination options, supporting multiple pole configurations from 2 to 12 contacts. With a robust nylon shell, gold-plated brass contacts, and an IP67 rating, these connectors are perfect for ensuring durable and waterproof connections in industrial, medical, security, or test equipment setups. Buy now for dependable performance.
Get multicomp IP67 connector MP002719 today—designed for rugged outdoor and industrial use with quick bayonet coupling for secure connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002719?
You can click on the BUY or RFQ button to purchase MP002719 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002719?
You can download the MP002719 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002719?
MULTICOMP PRO
